第03讲 - 设计建模 - 语法要素

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87120.JPG

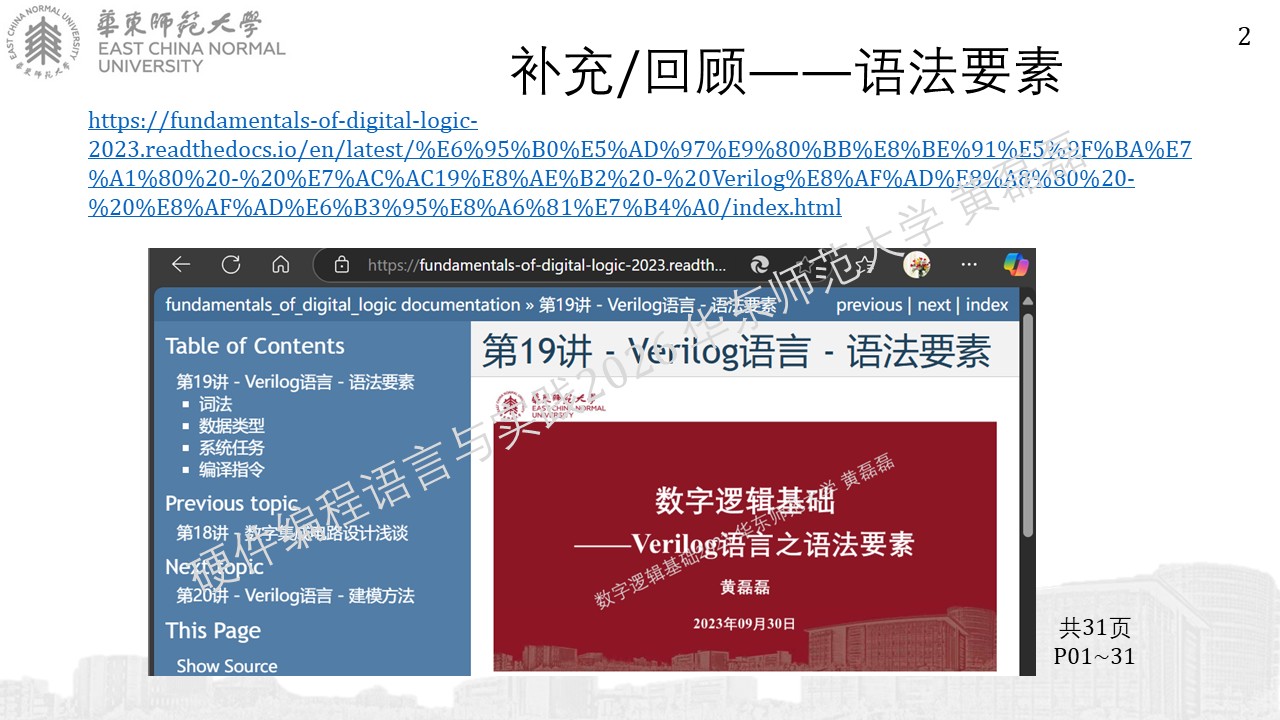

旧版本

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87220.JPG

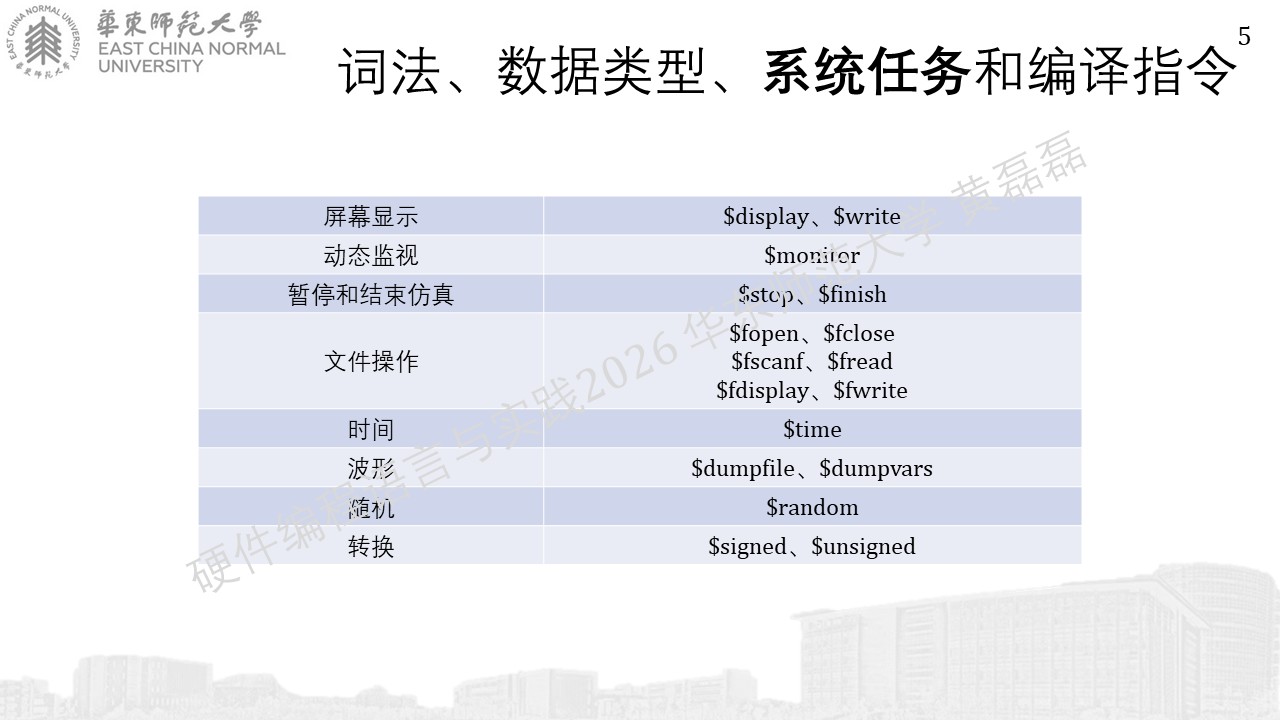

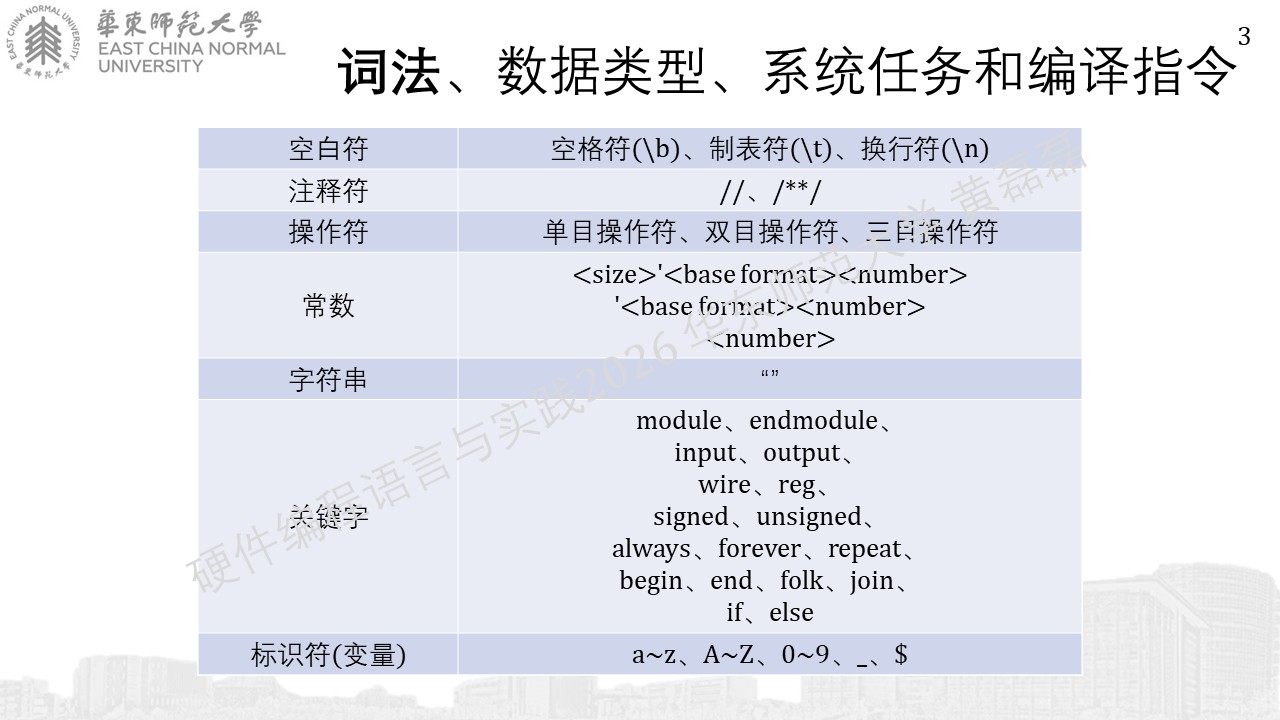

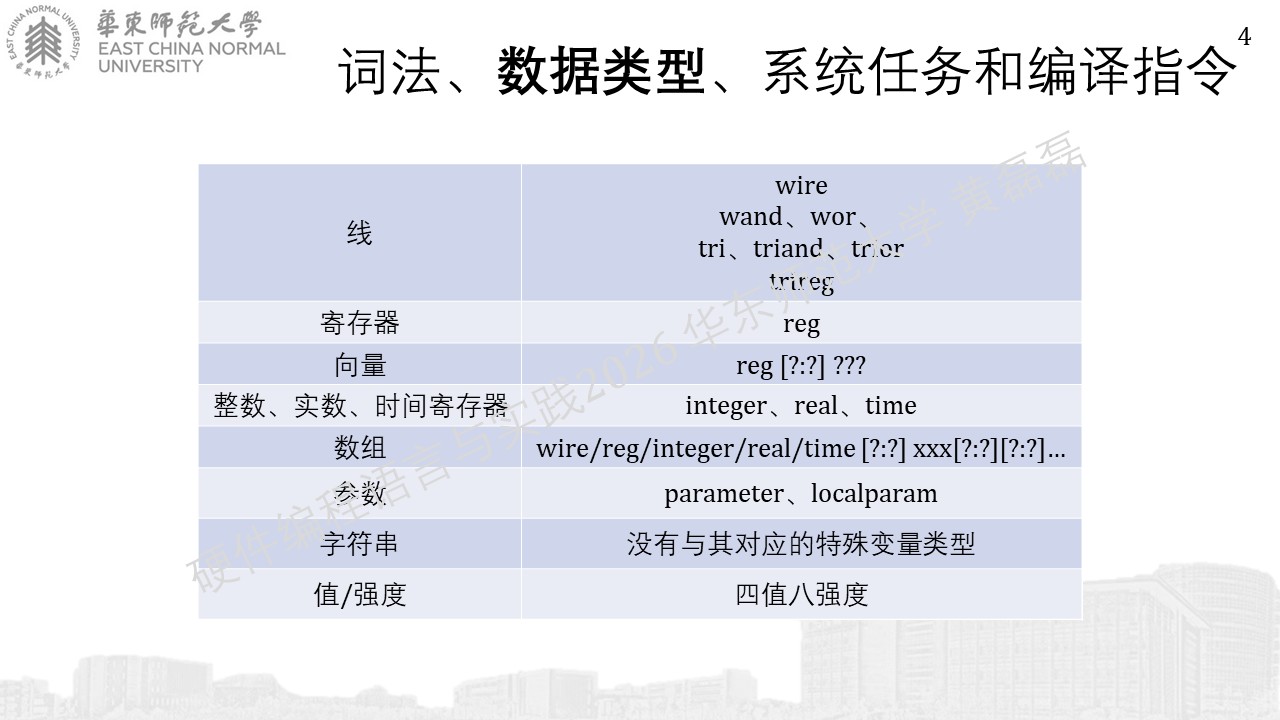

对于旧版本的总结

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87318.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87417.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87516.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%8767.JPG

新版本

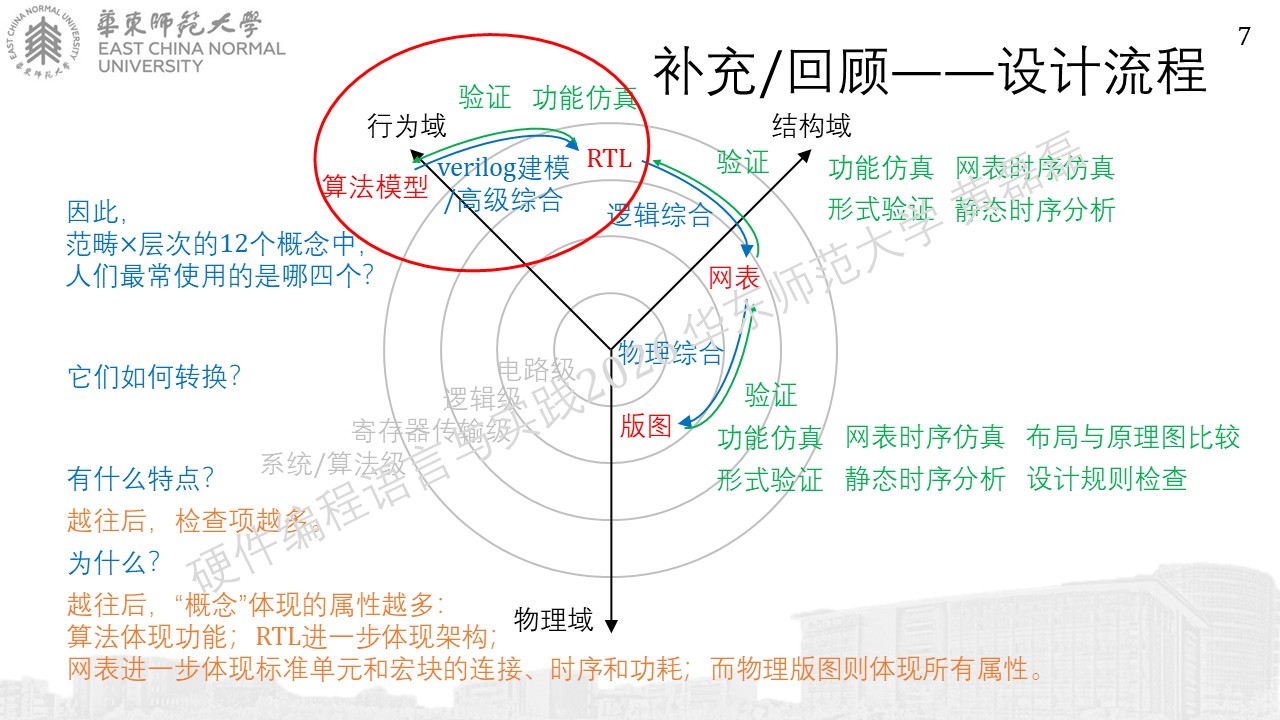

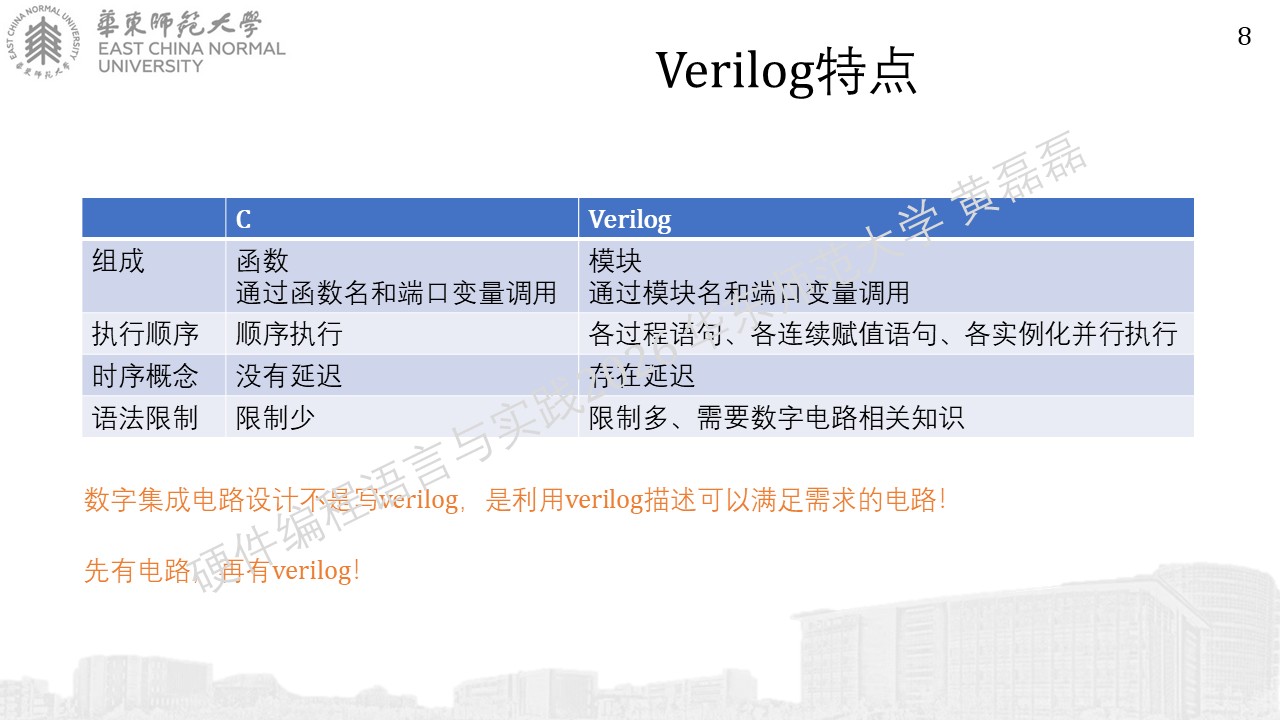

导入

../../_images/%E5%B9%BB%E7%81%AF%E7%89%8777.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%8787.JPG

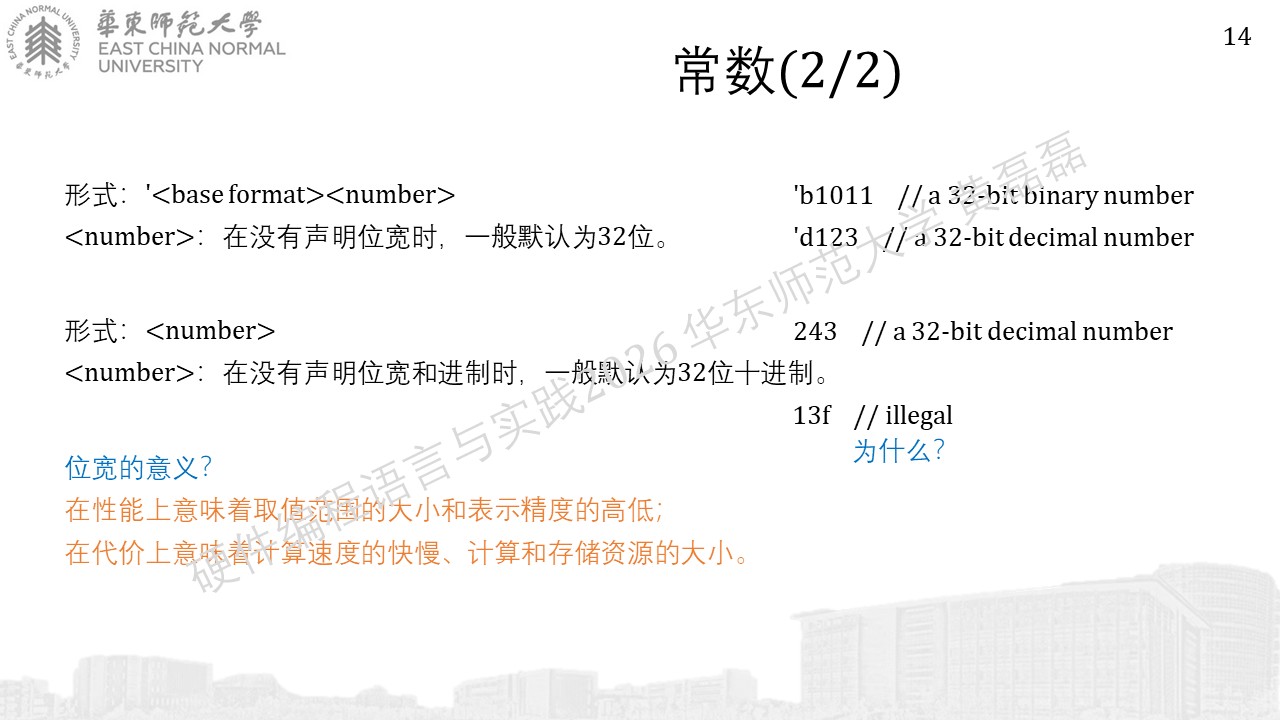

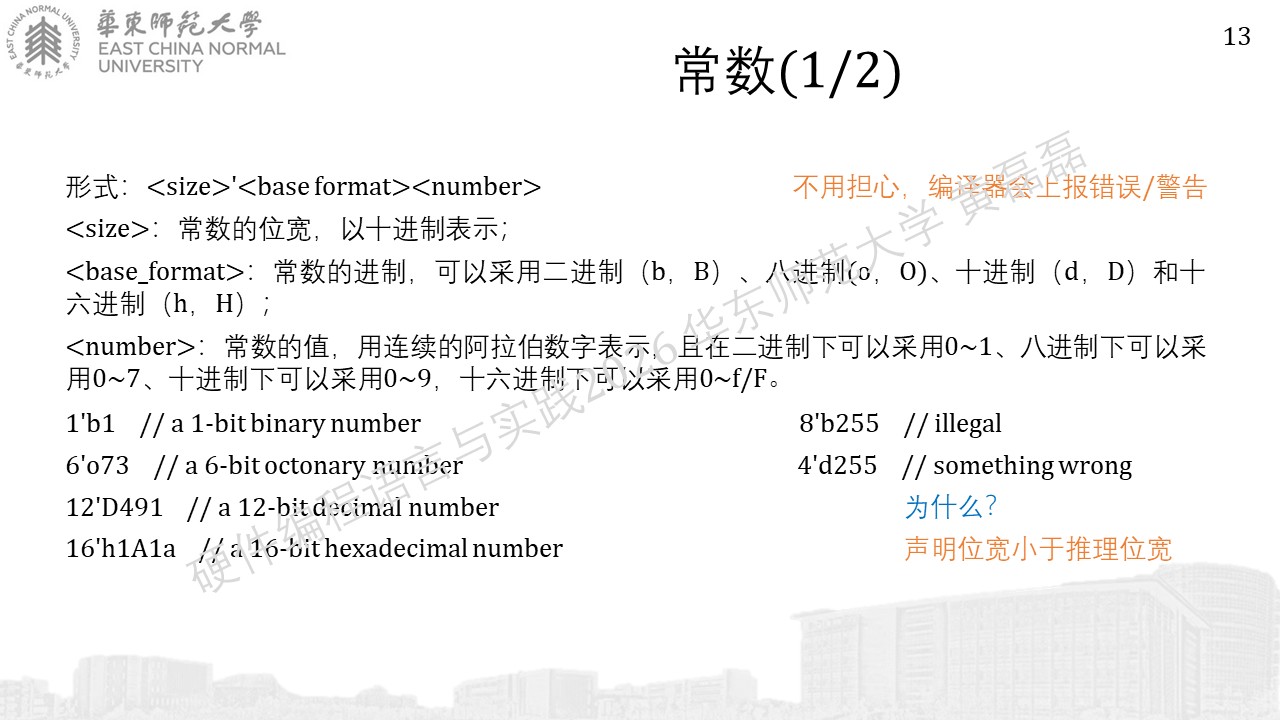

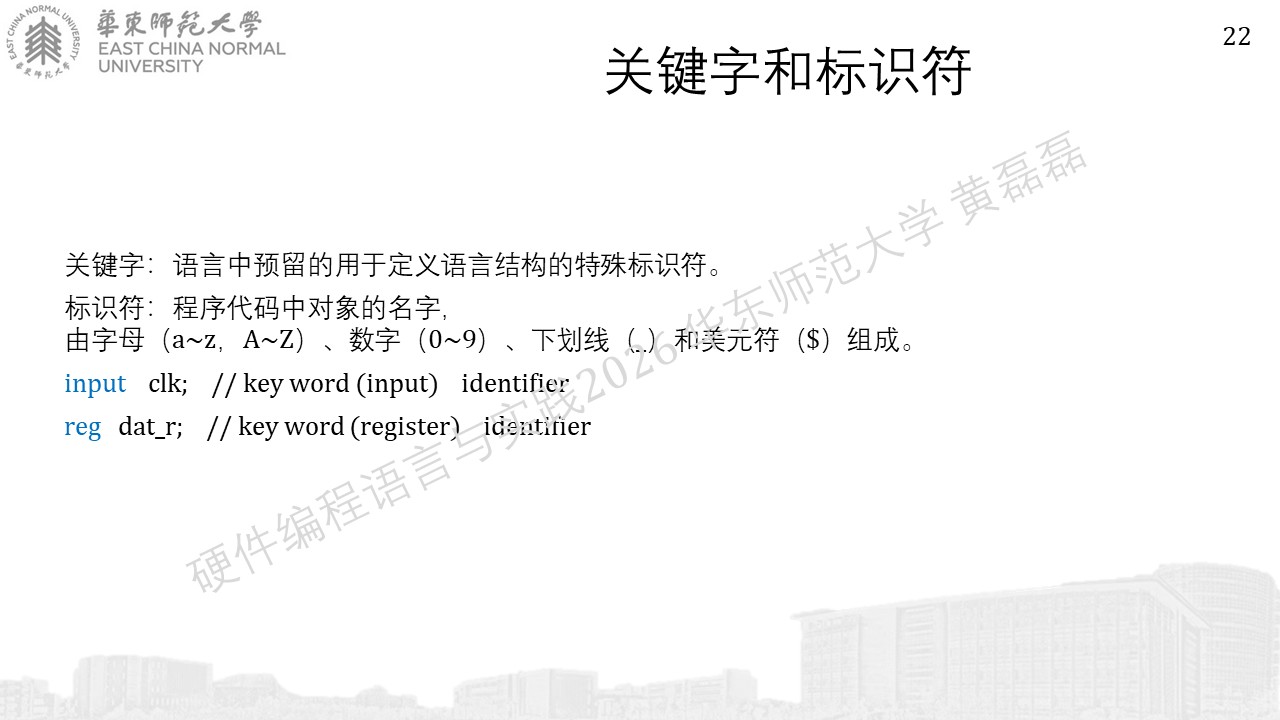

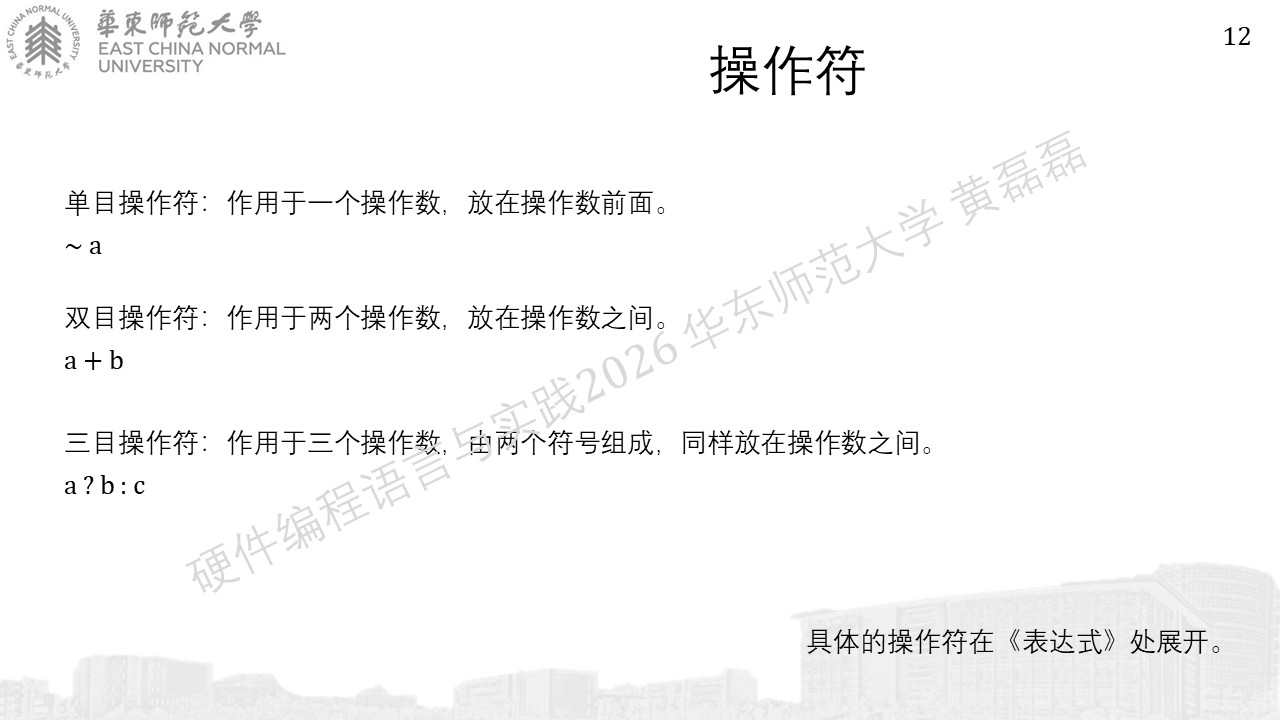

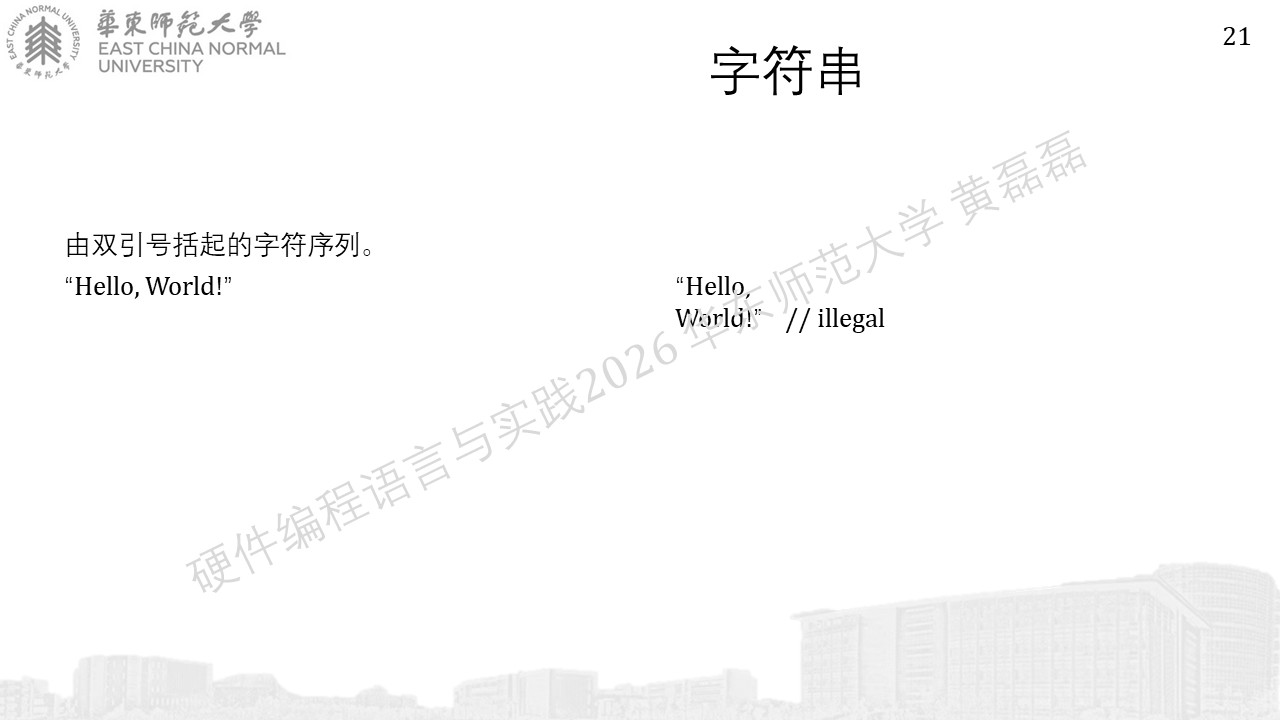

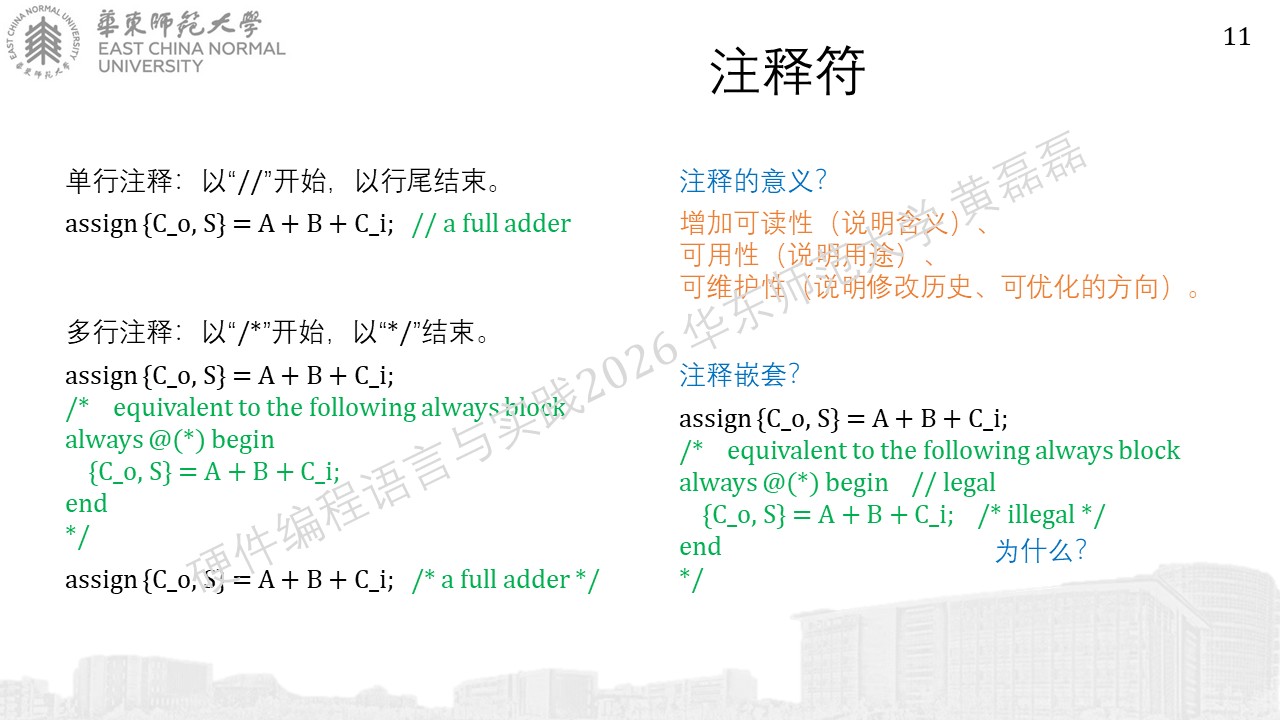

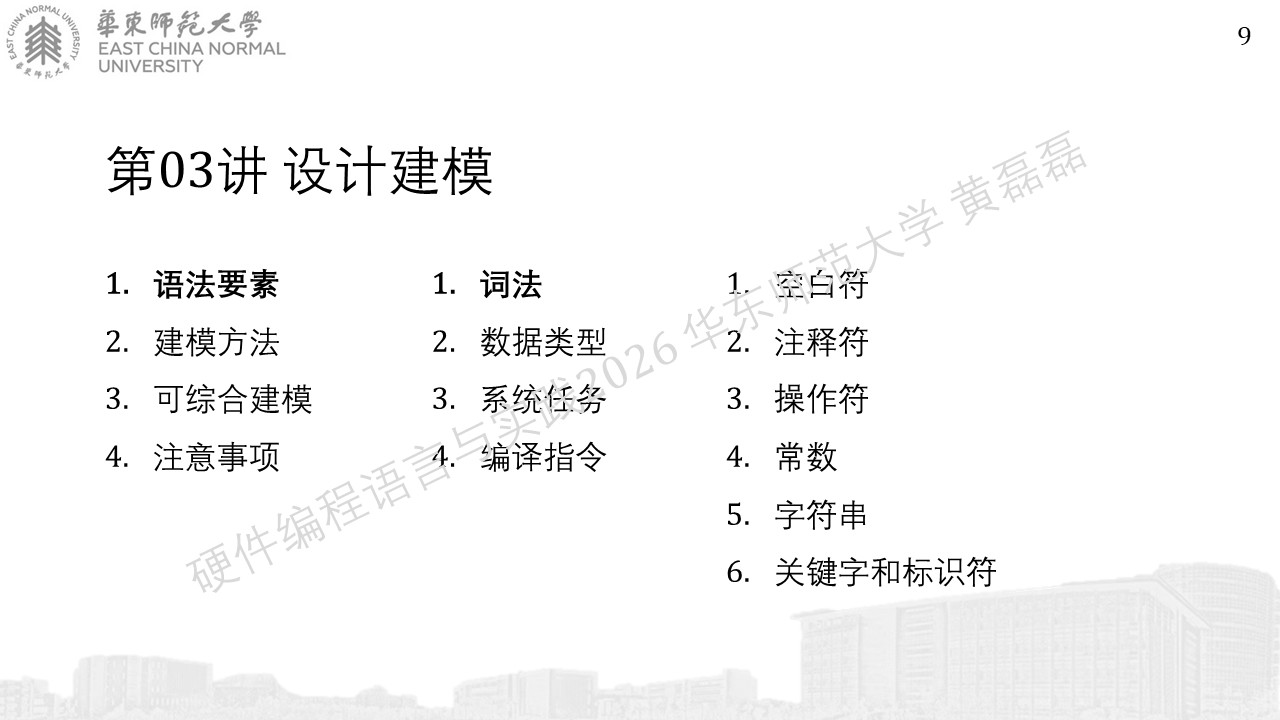

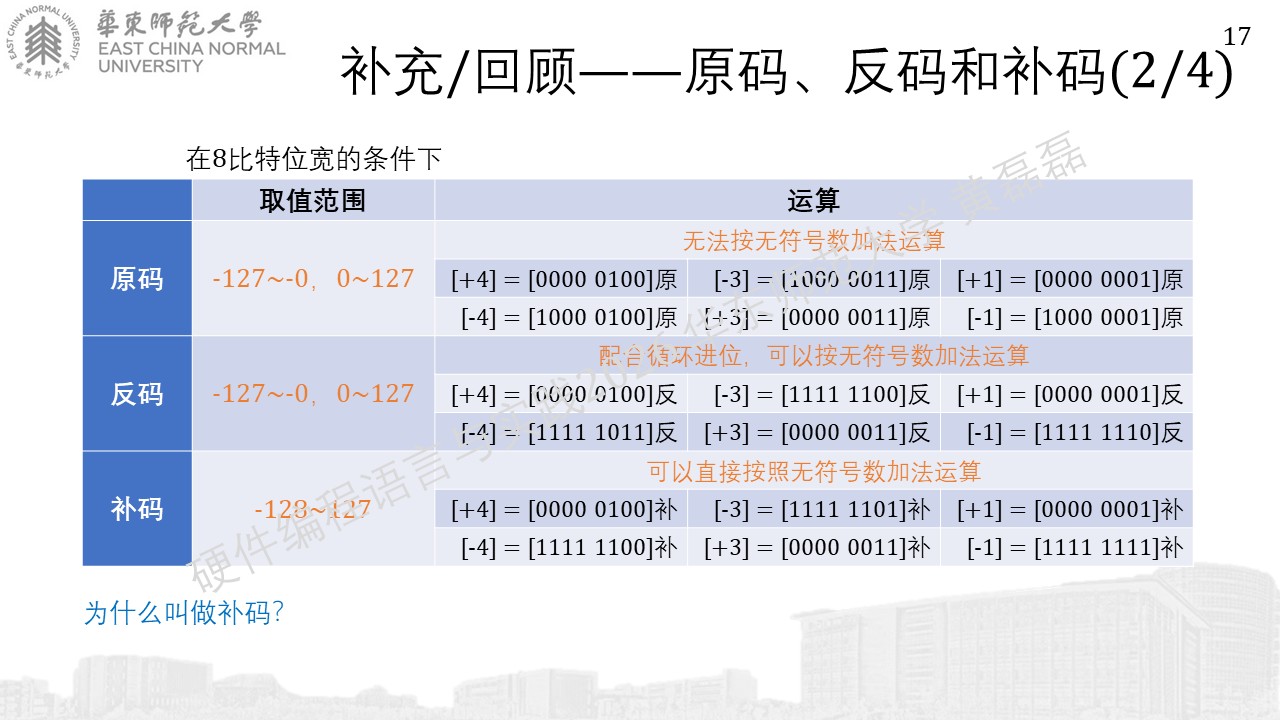

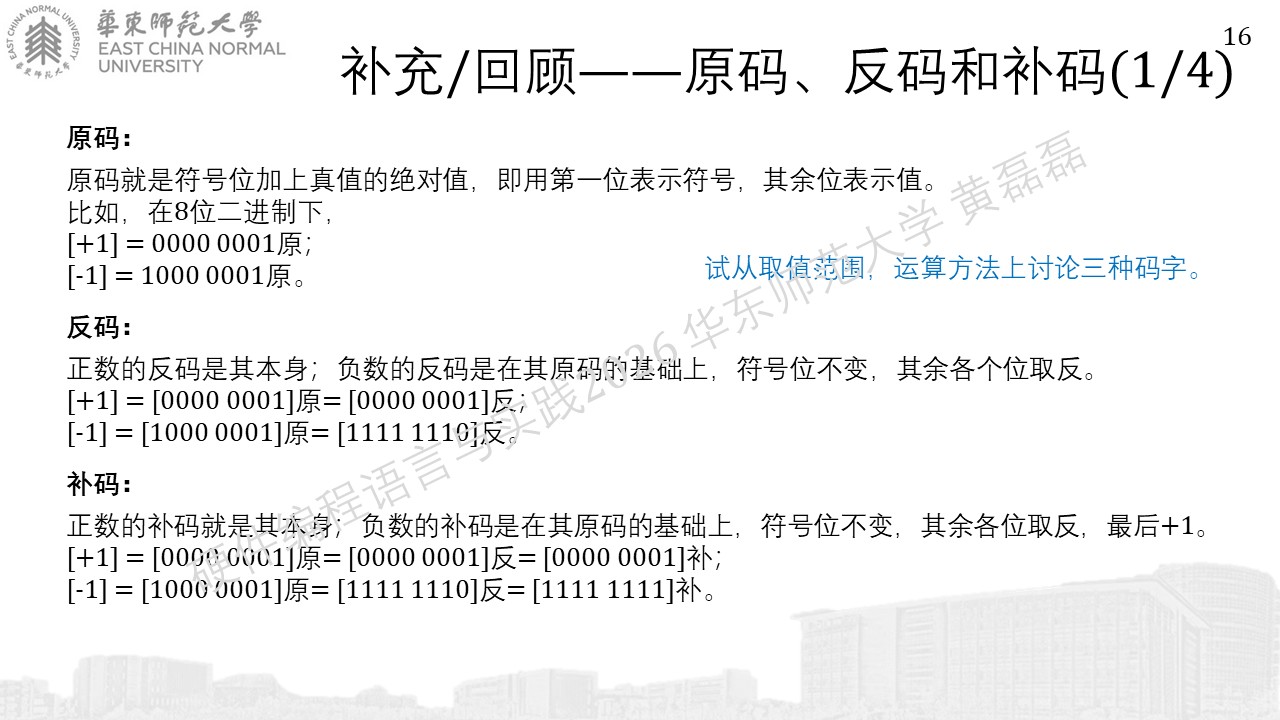

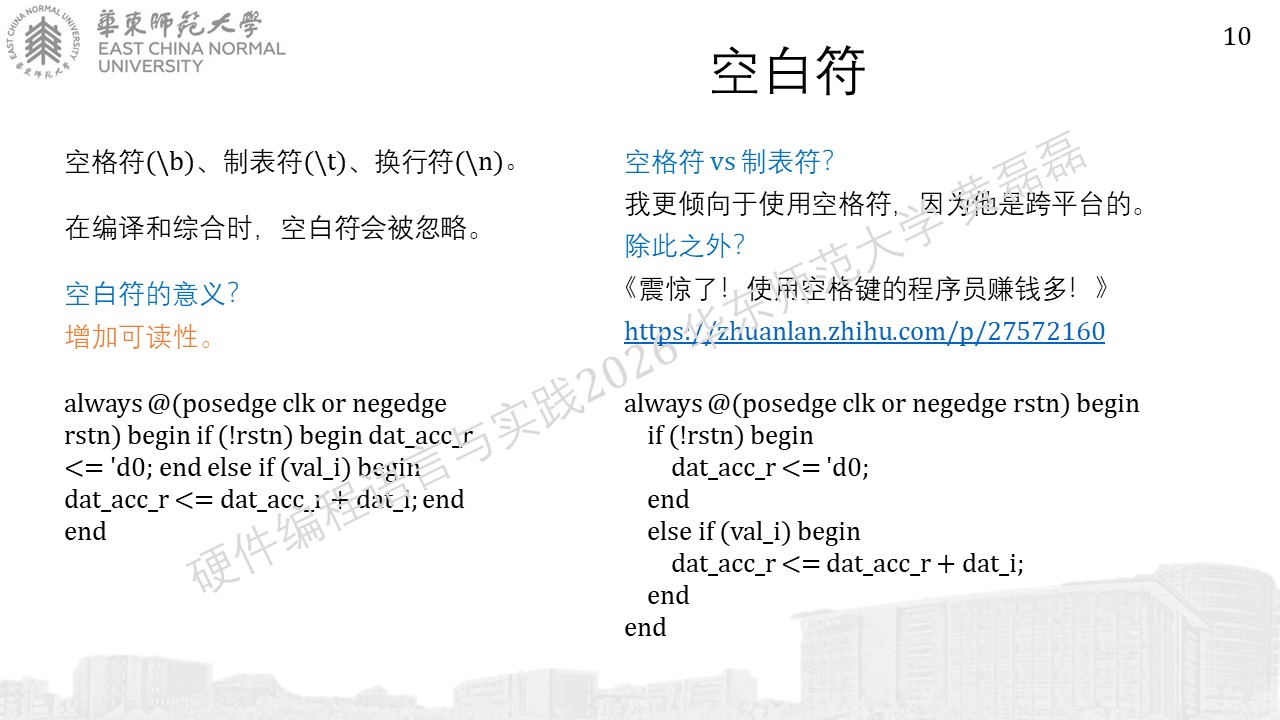

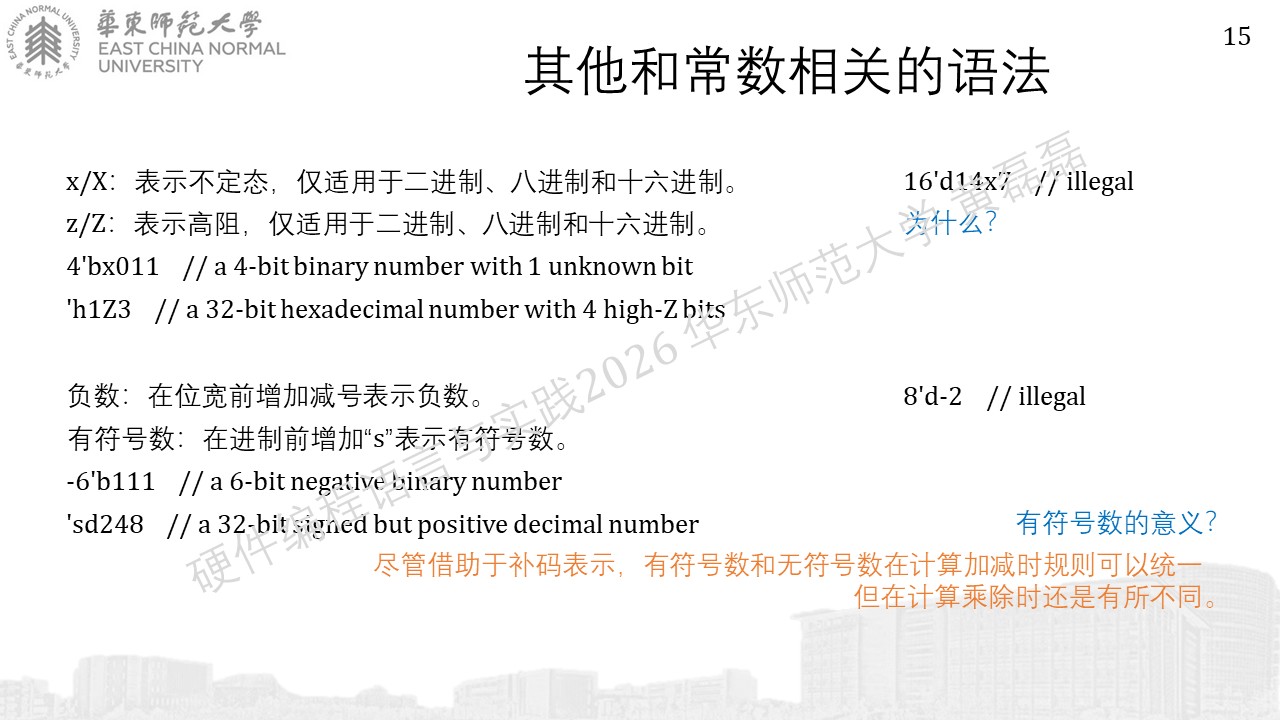

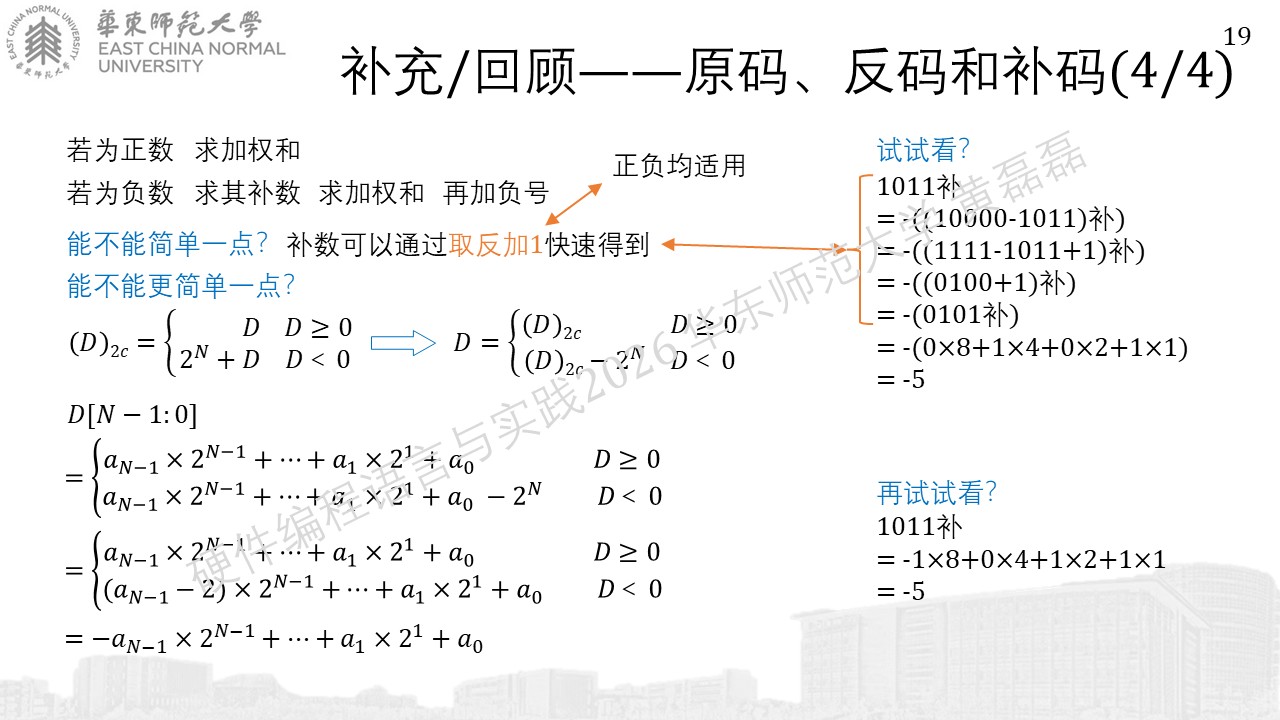

词法

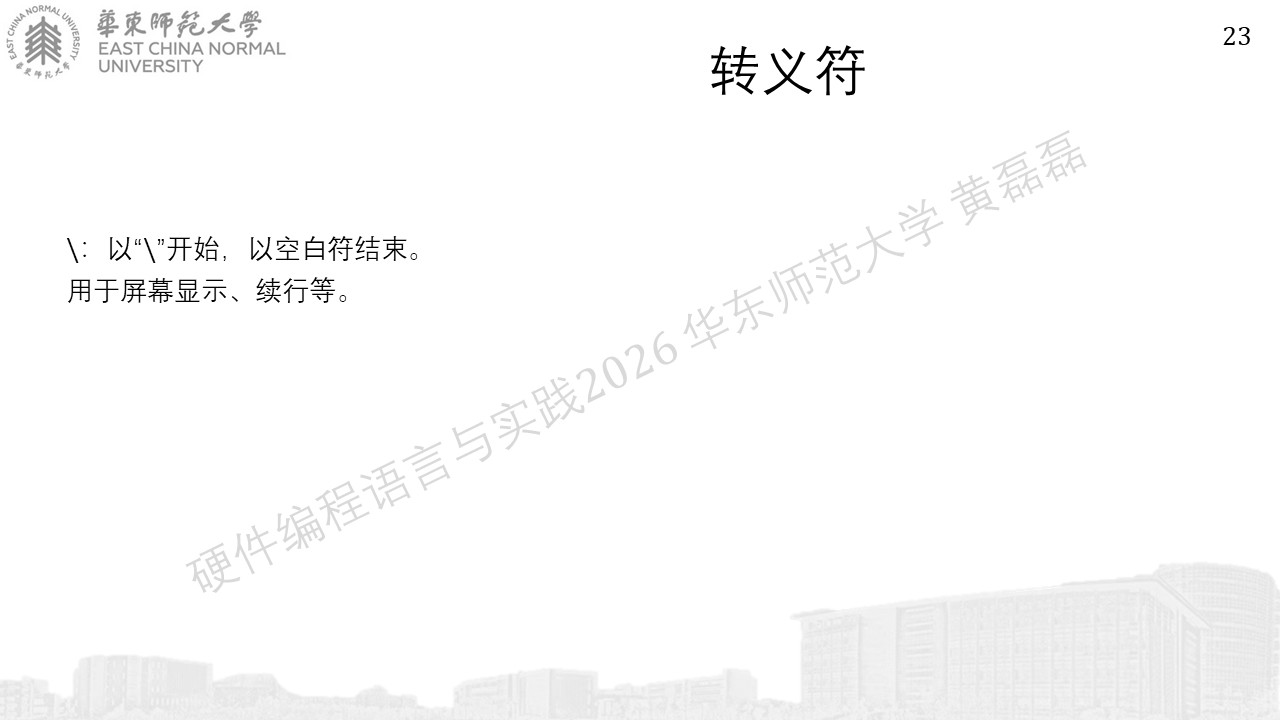

../../_images/%E5%B9%BB%E7%81%AF%E7%89%8797.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87107.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%871111.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87127.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87137.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87147.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87157.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87167.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87177.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87187.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87197.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87206.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%872111.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87226.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87235.JPG

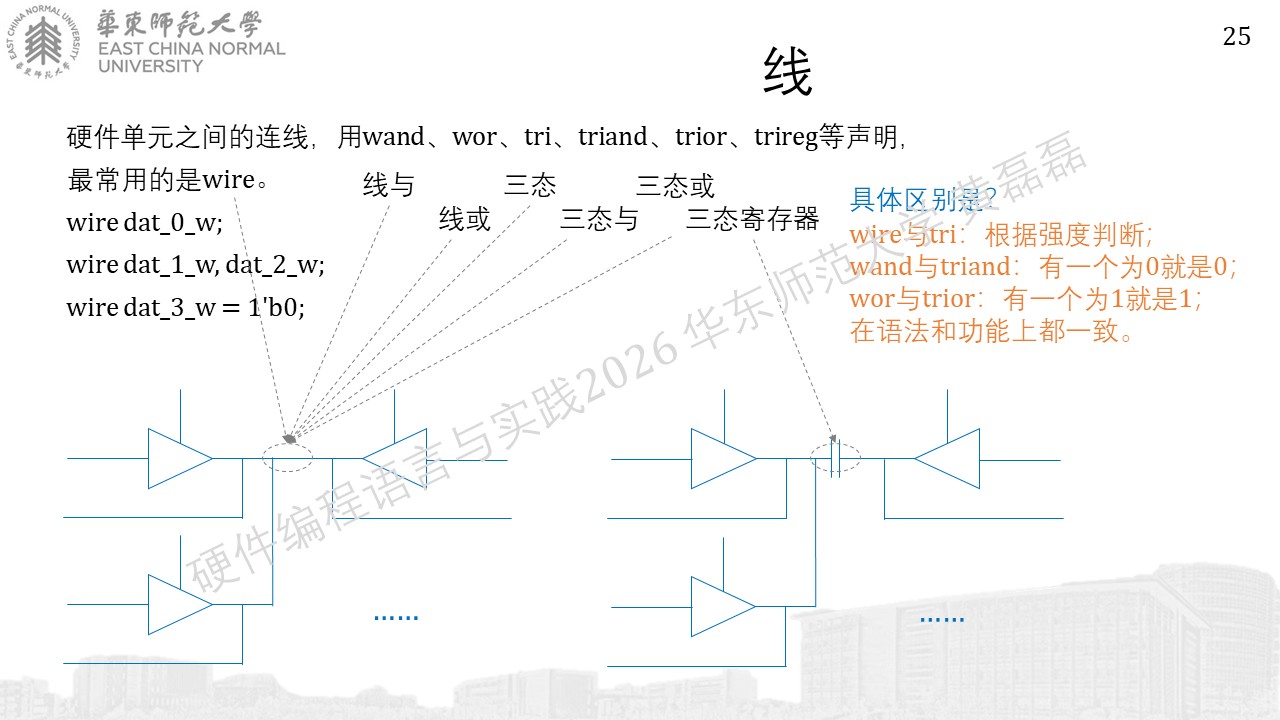

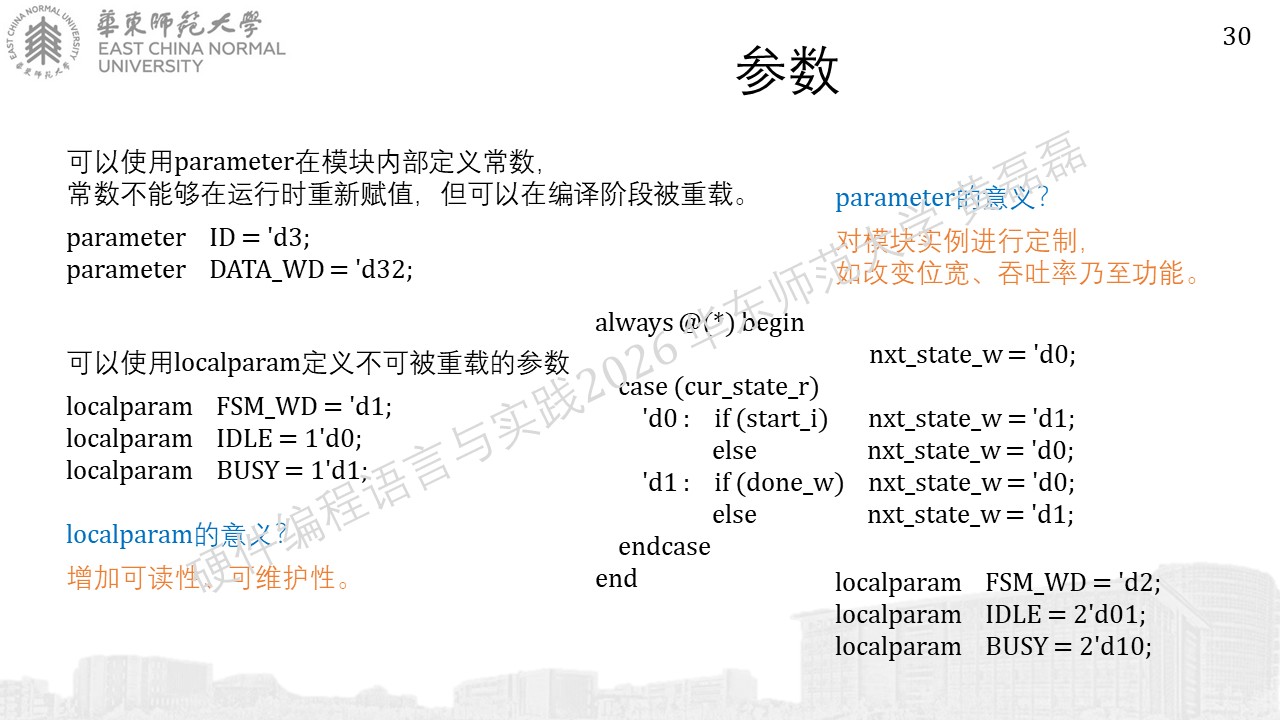

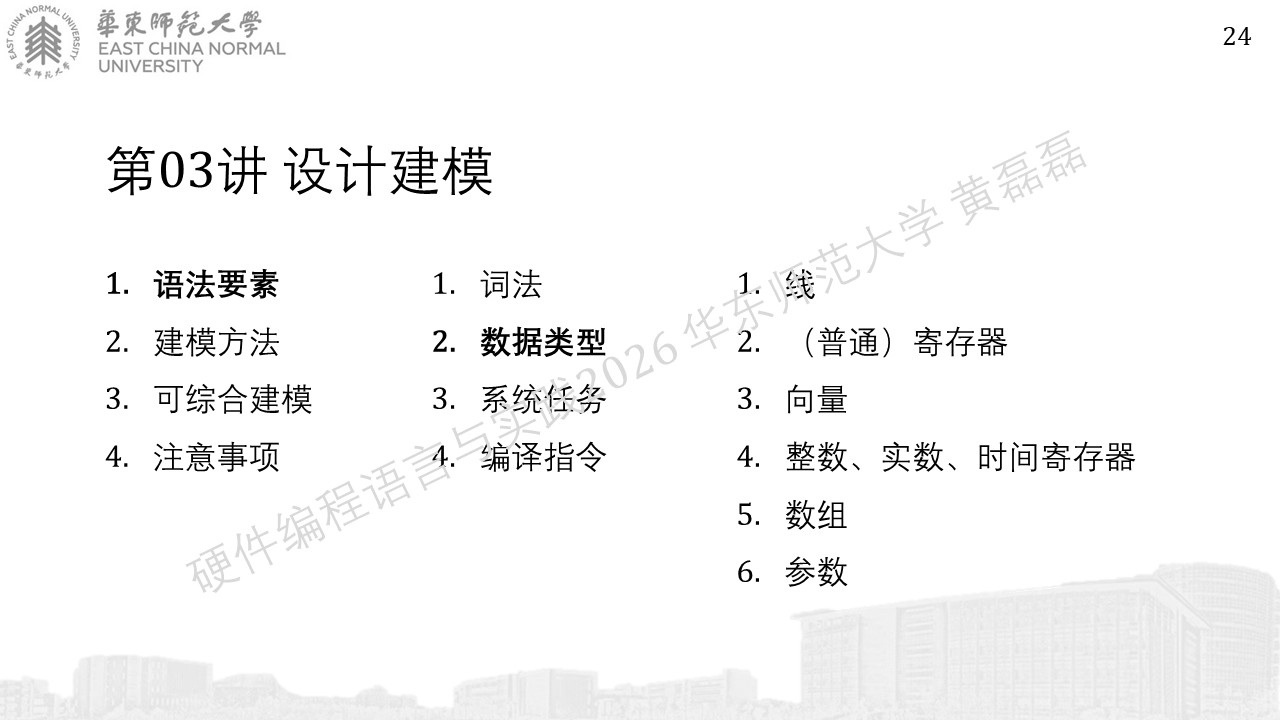

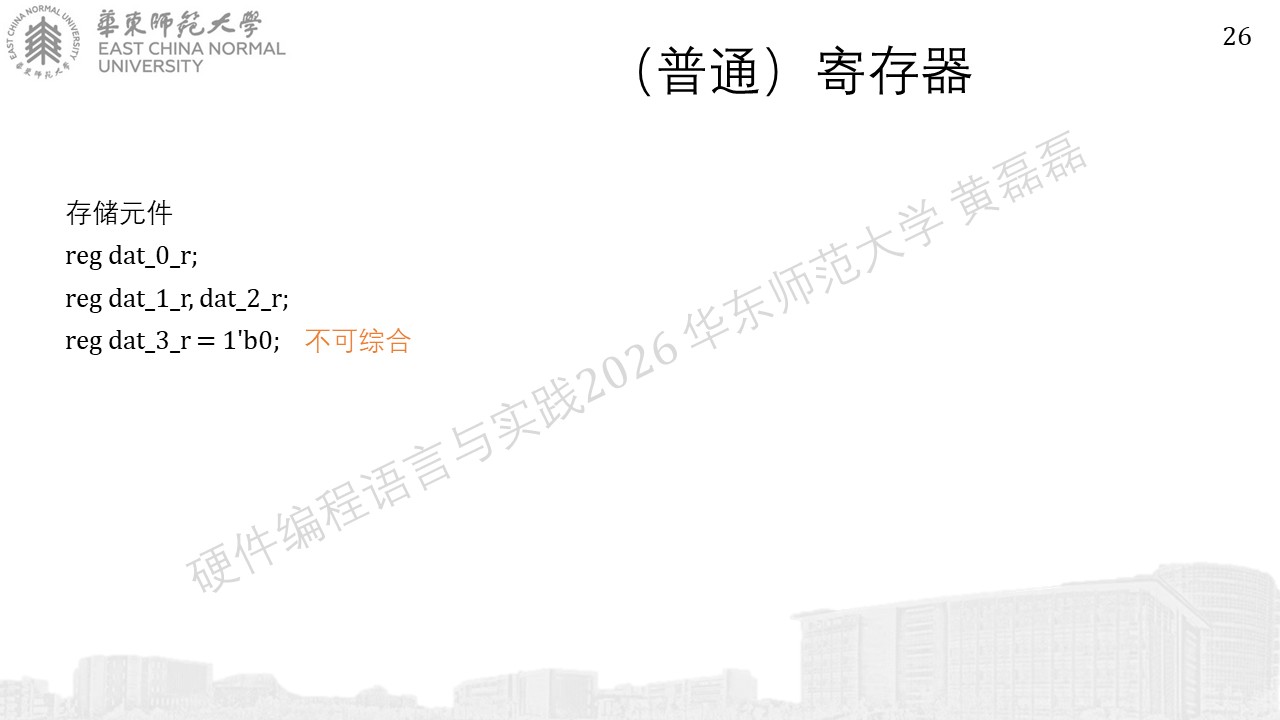

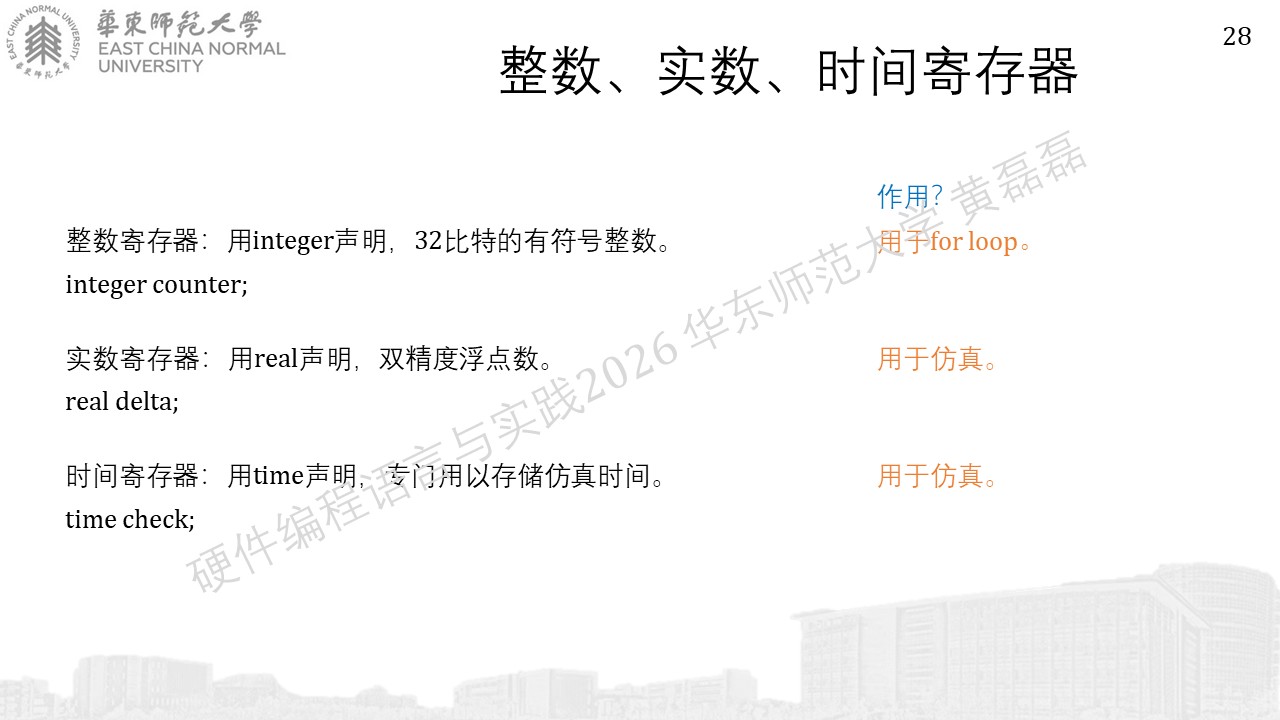

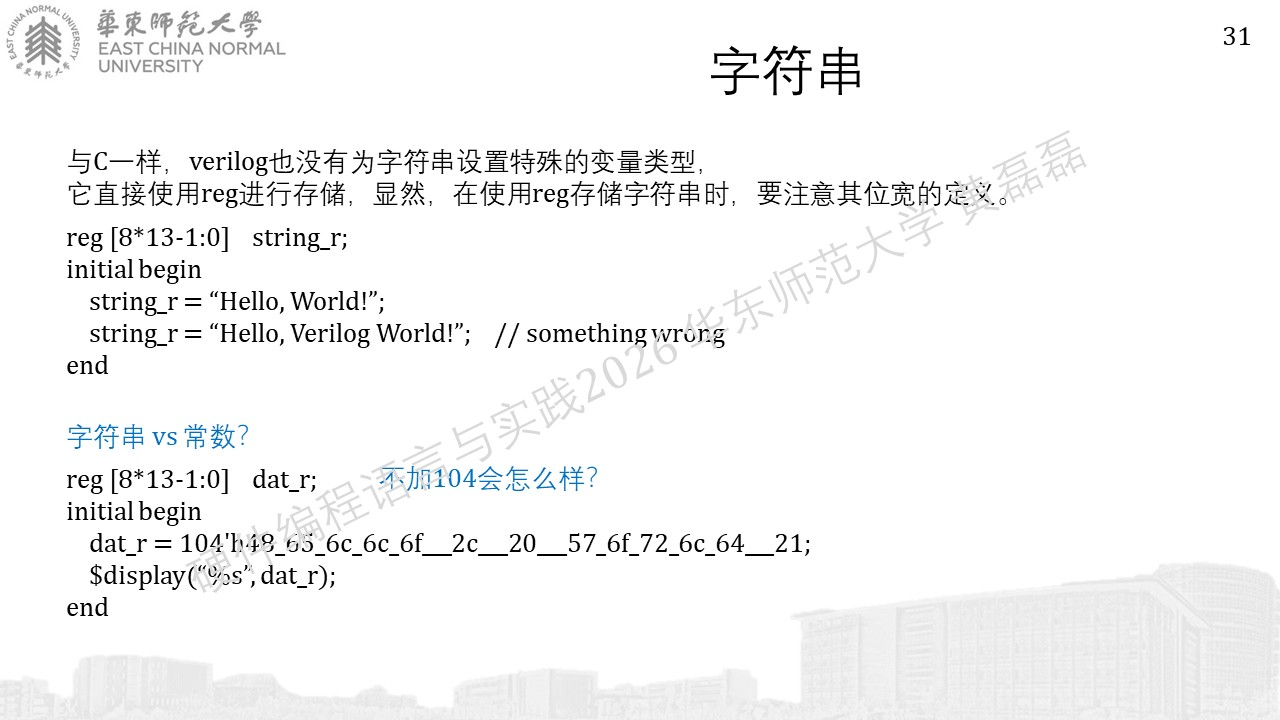

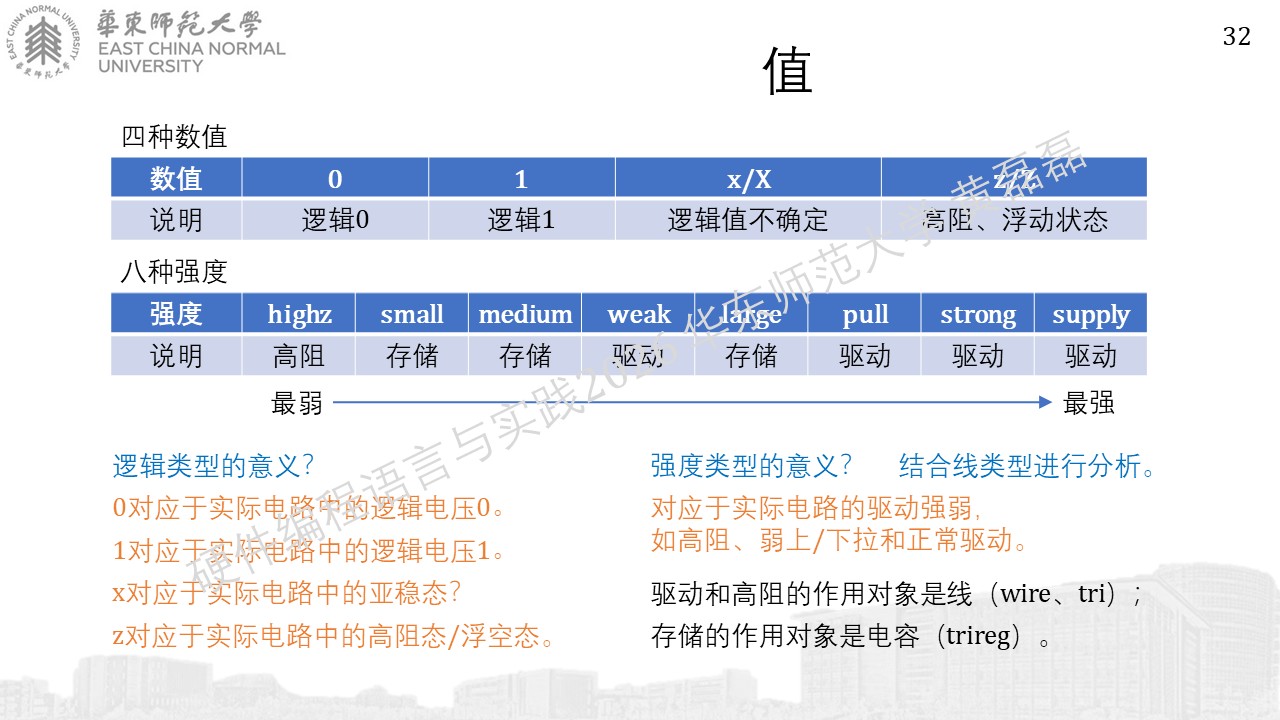

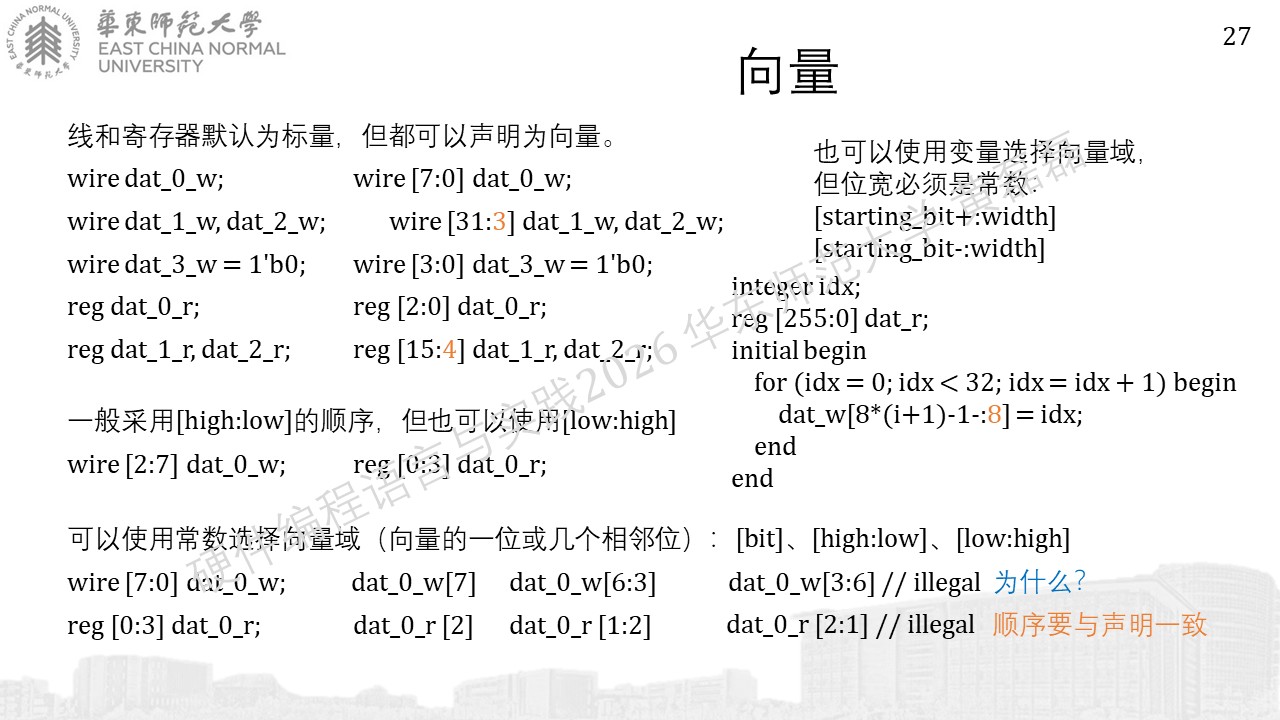

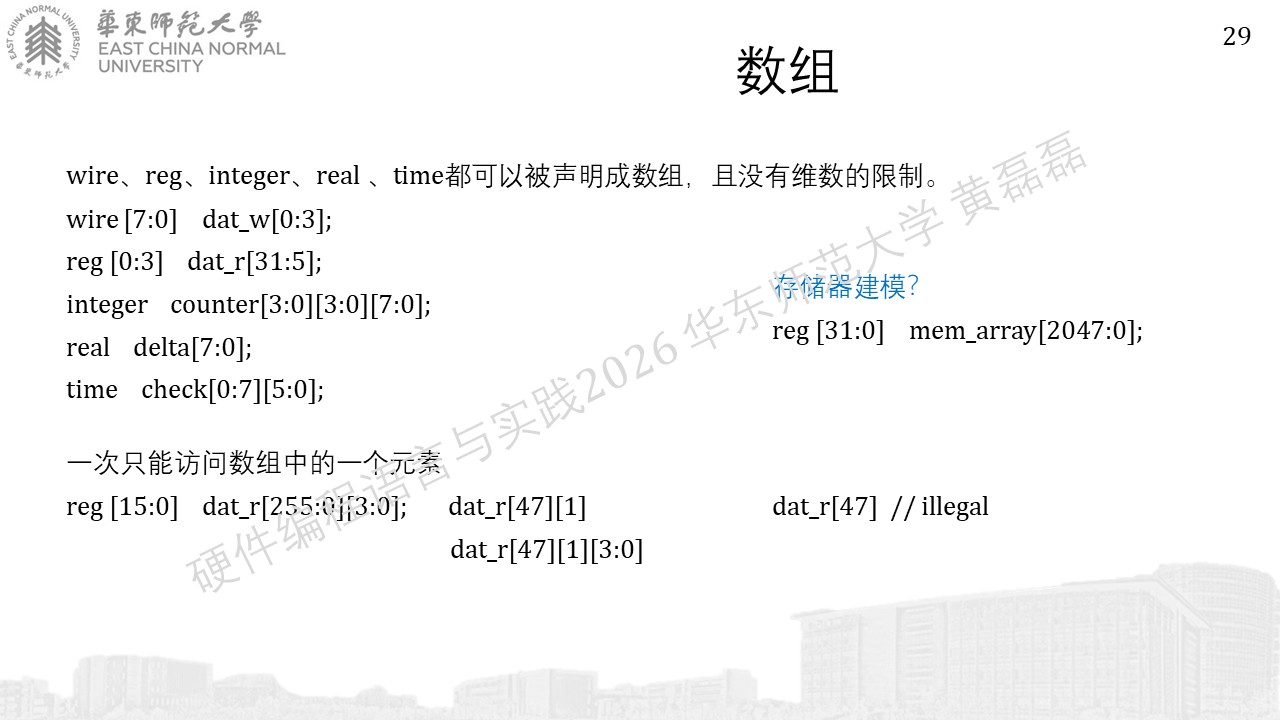

数据类型

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87245.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87254.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87264.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87273.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87283.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87293.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87303.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87319.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87323.JPG

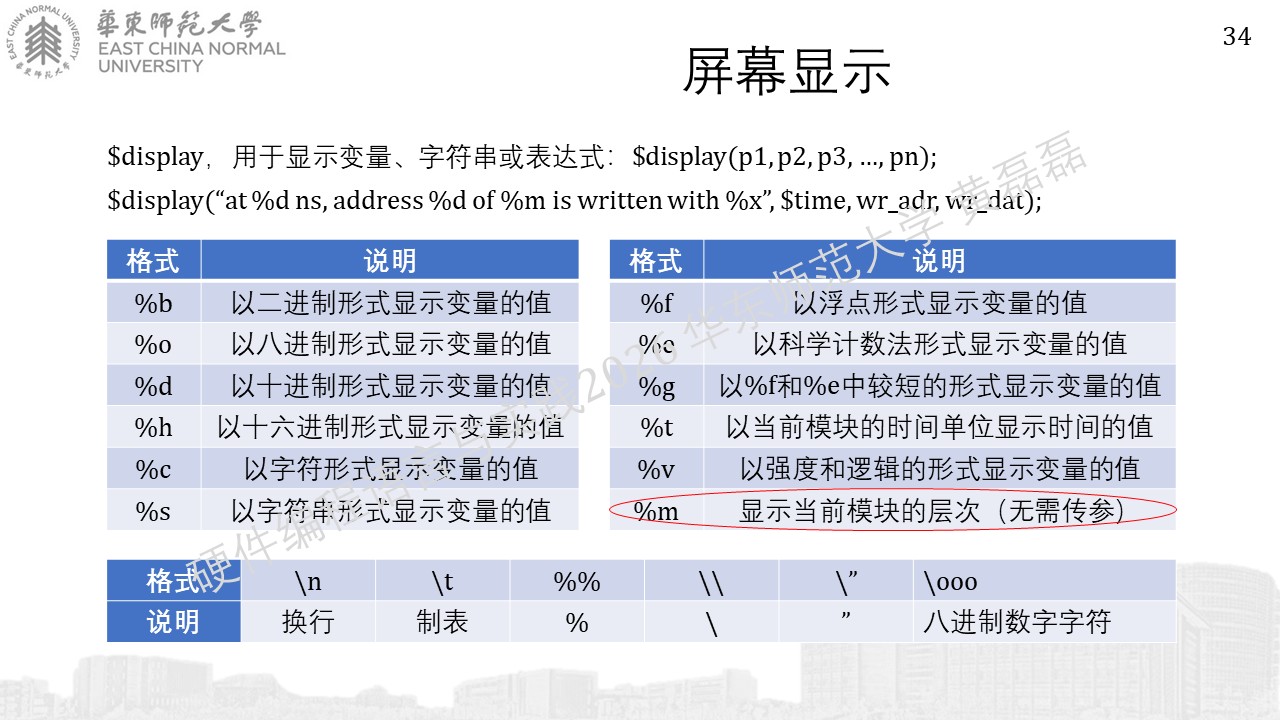

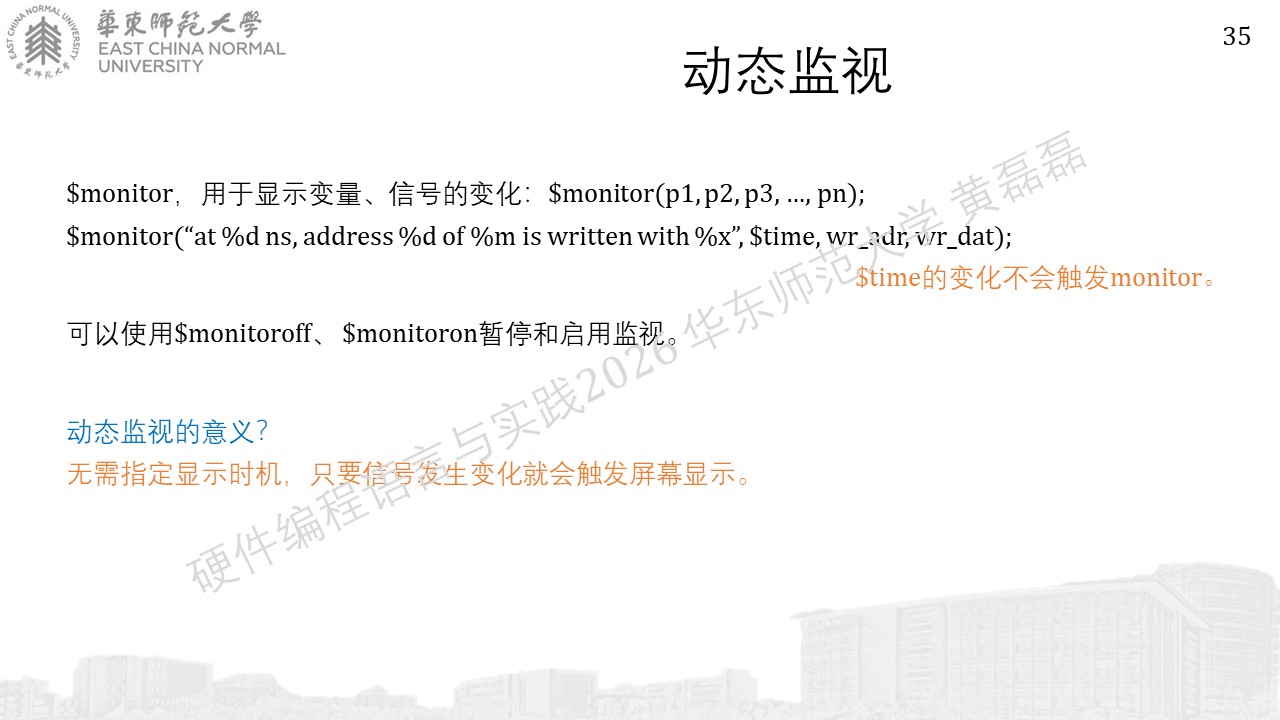

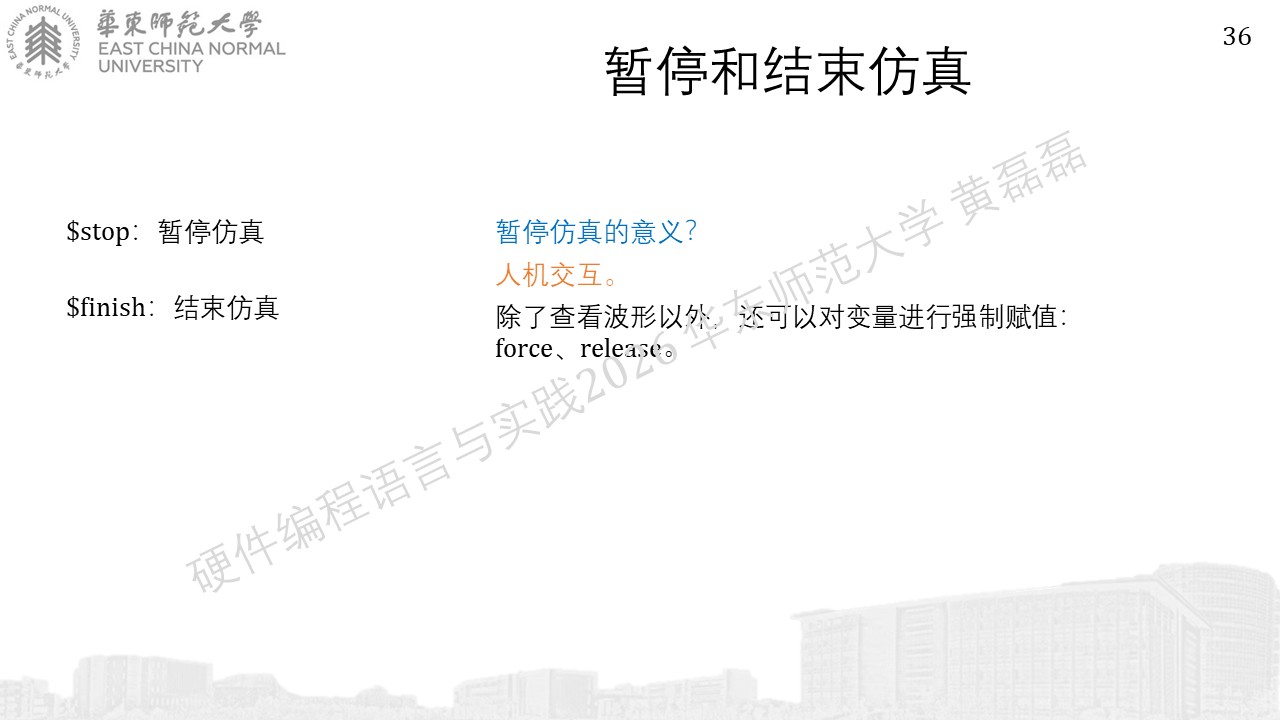

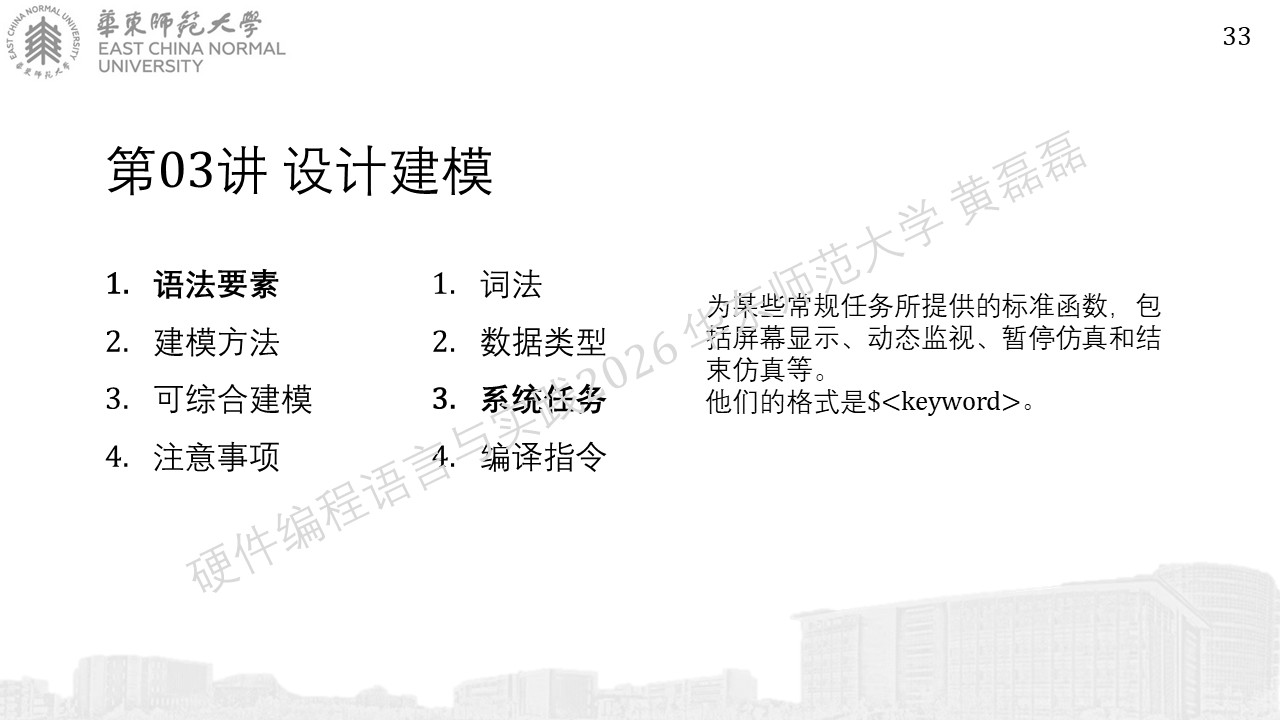

系统任务

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87333.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87342.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87352.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87362.JPG

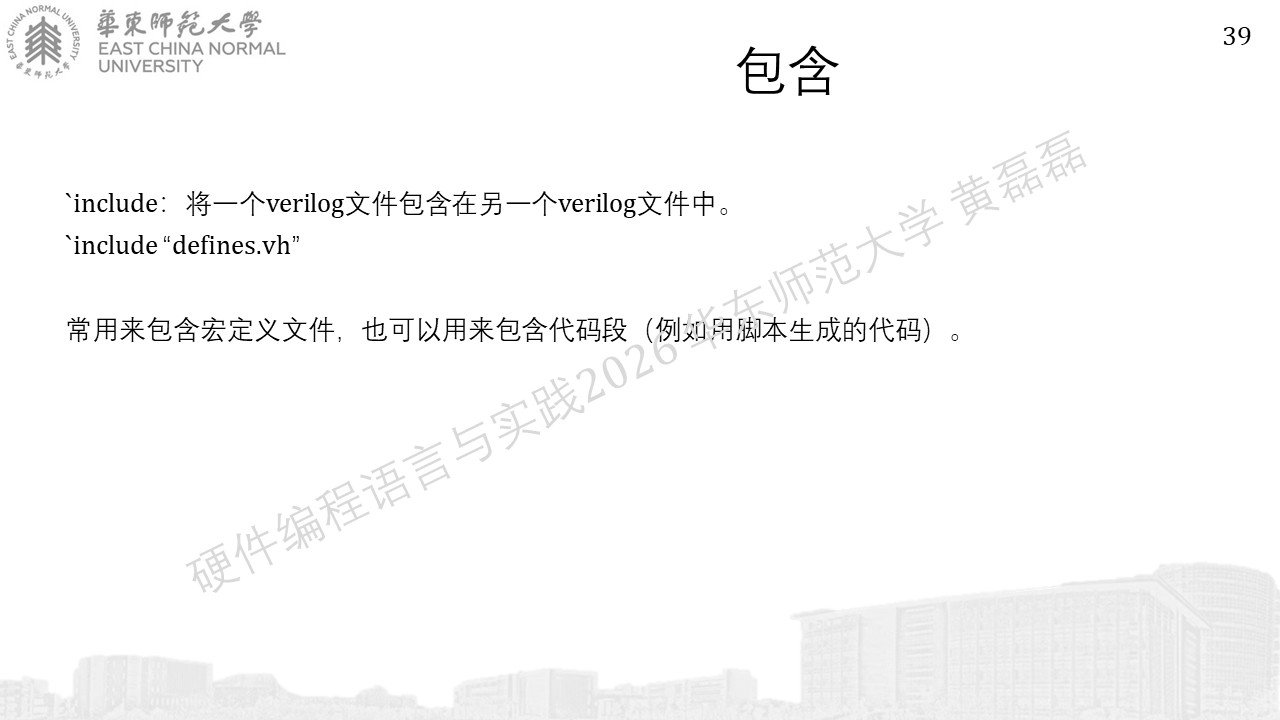

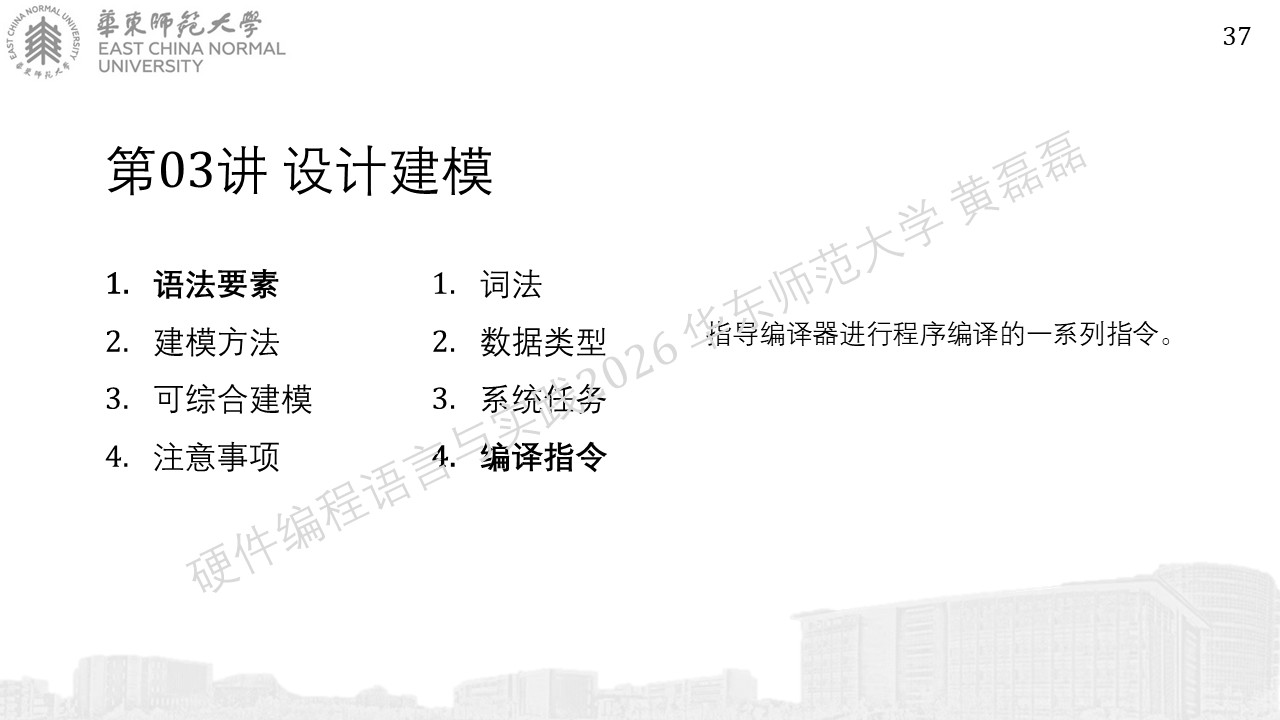

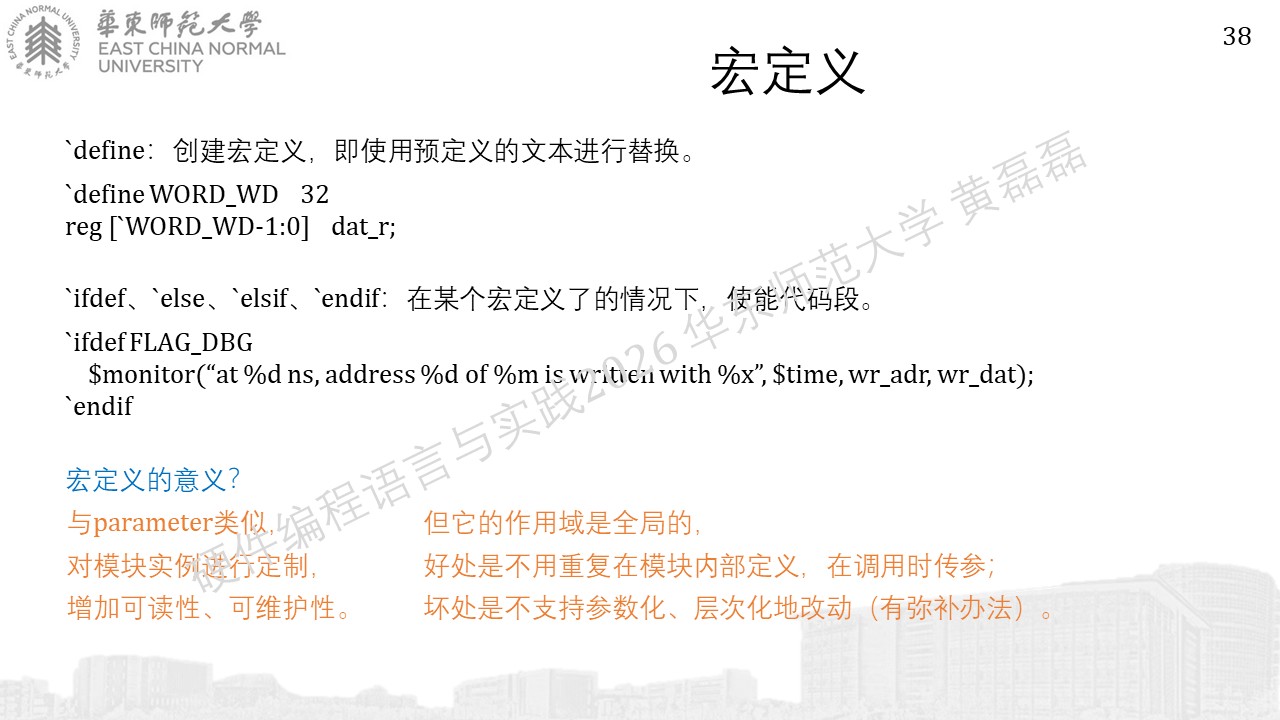

任务指令

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87372.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87382.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87392.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87402.JPG
