第02讲 - 设计流程 - 设计策略

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87117.JPG

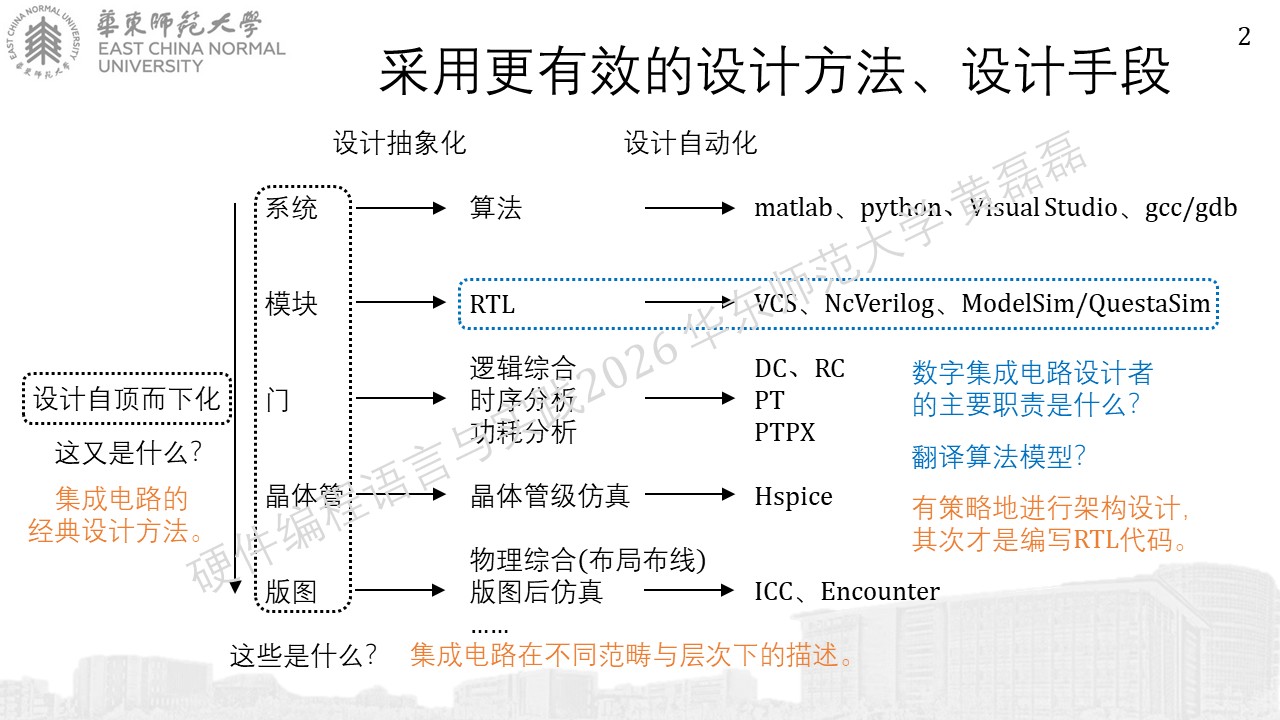

引子

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87217.JPG

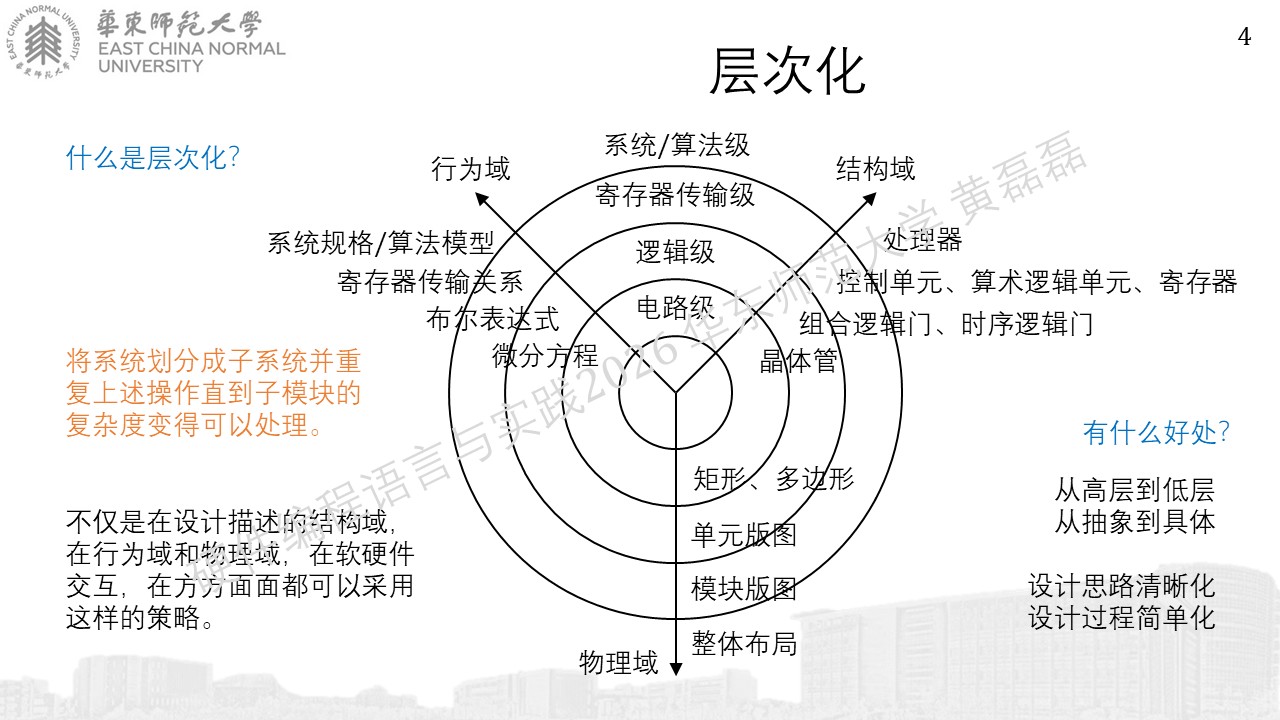

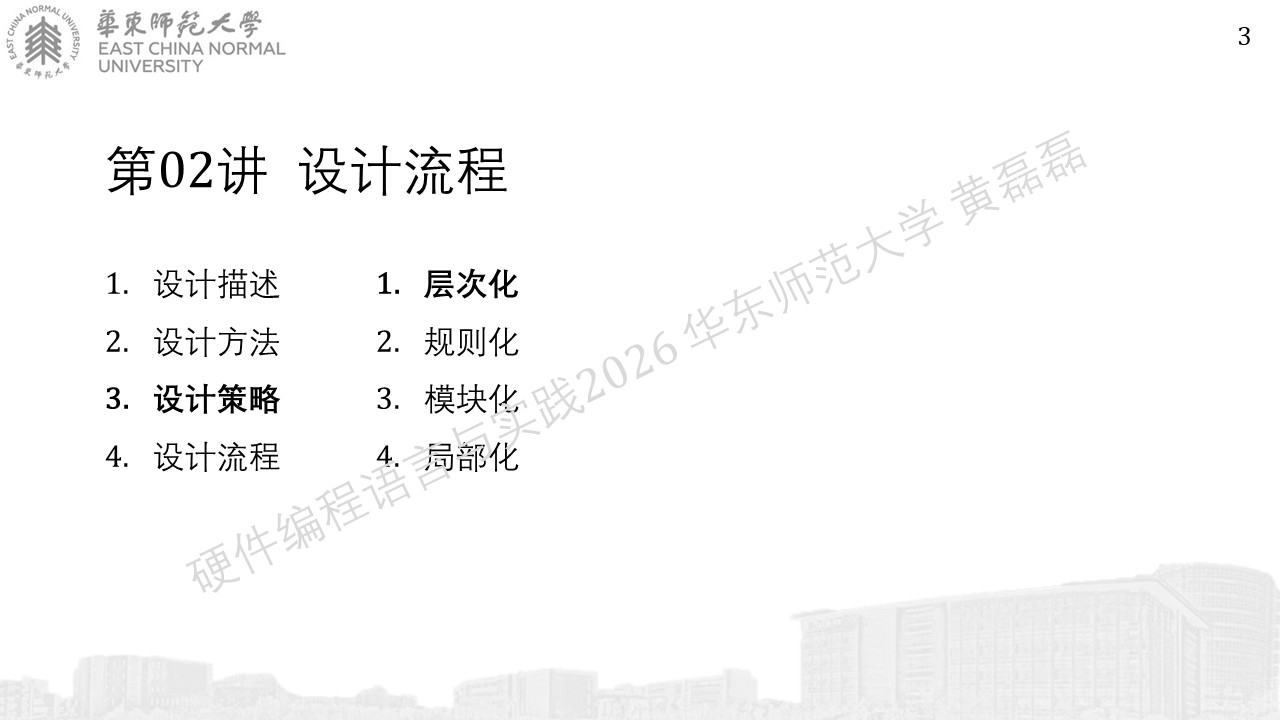

层次化

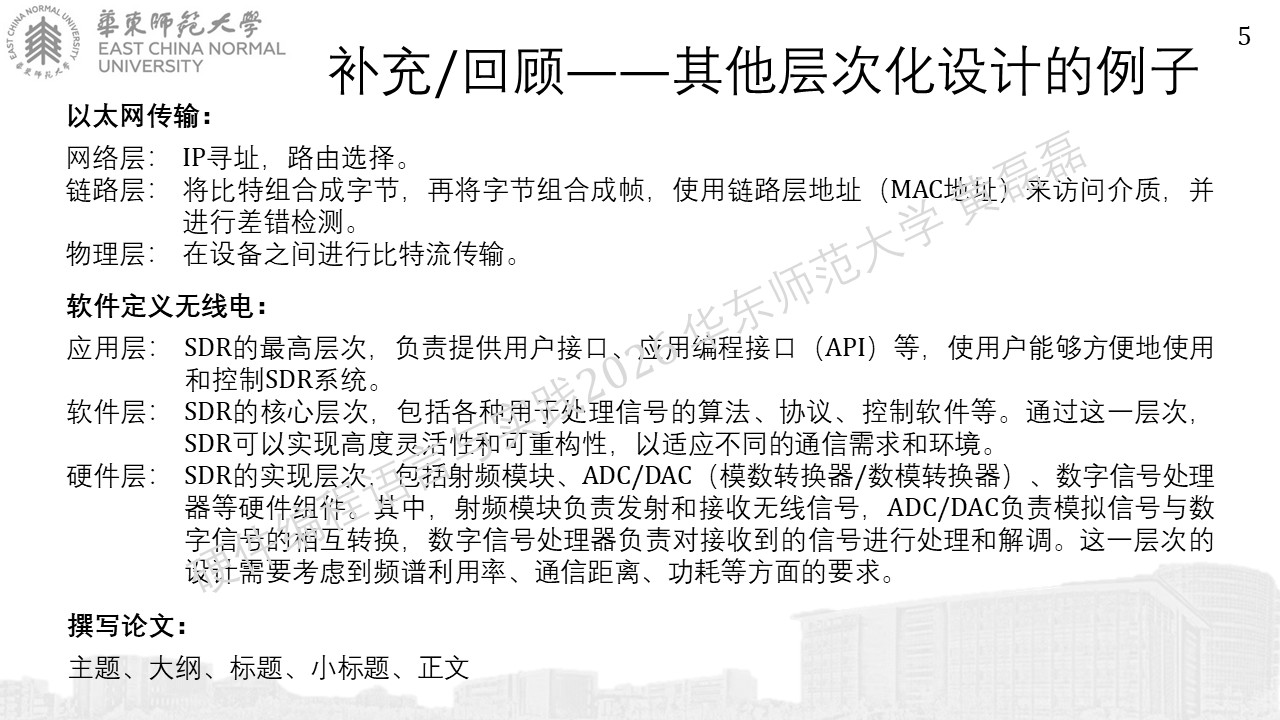

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87315.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87415.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87514.JPG

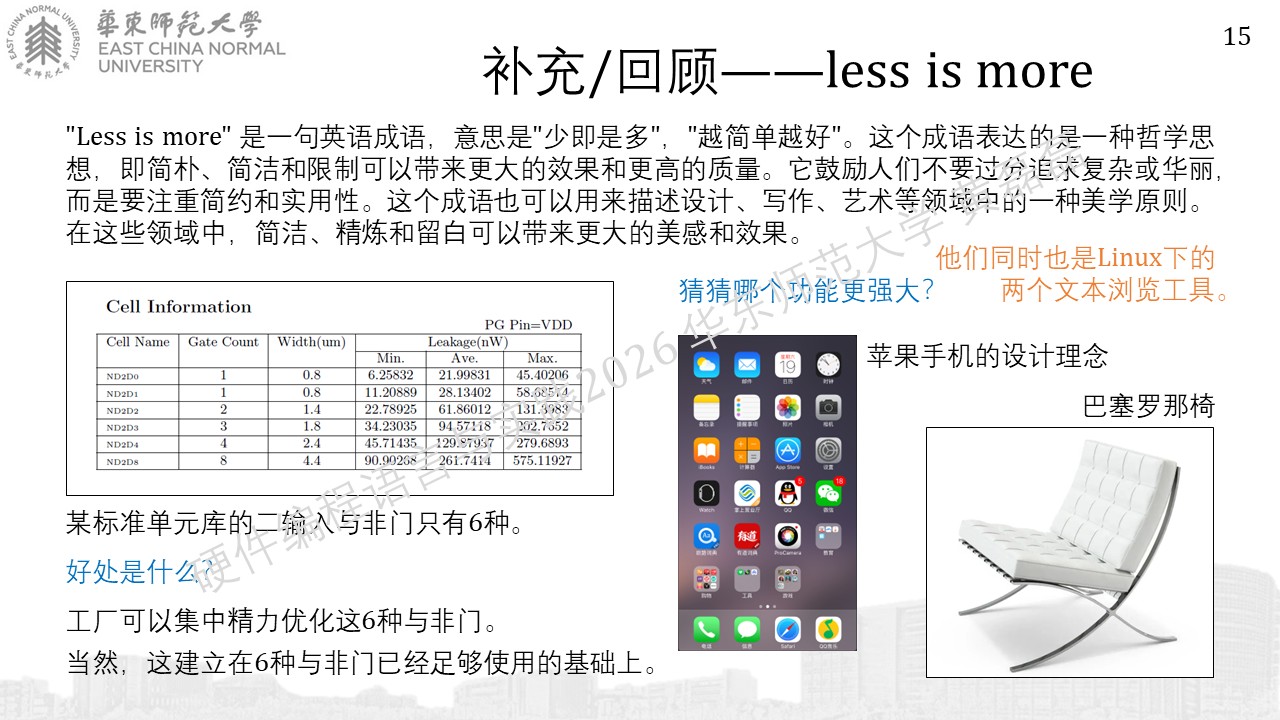

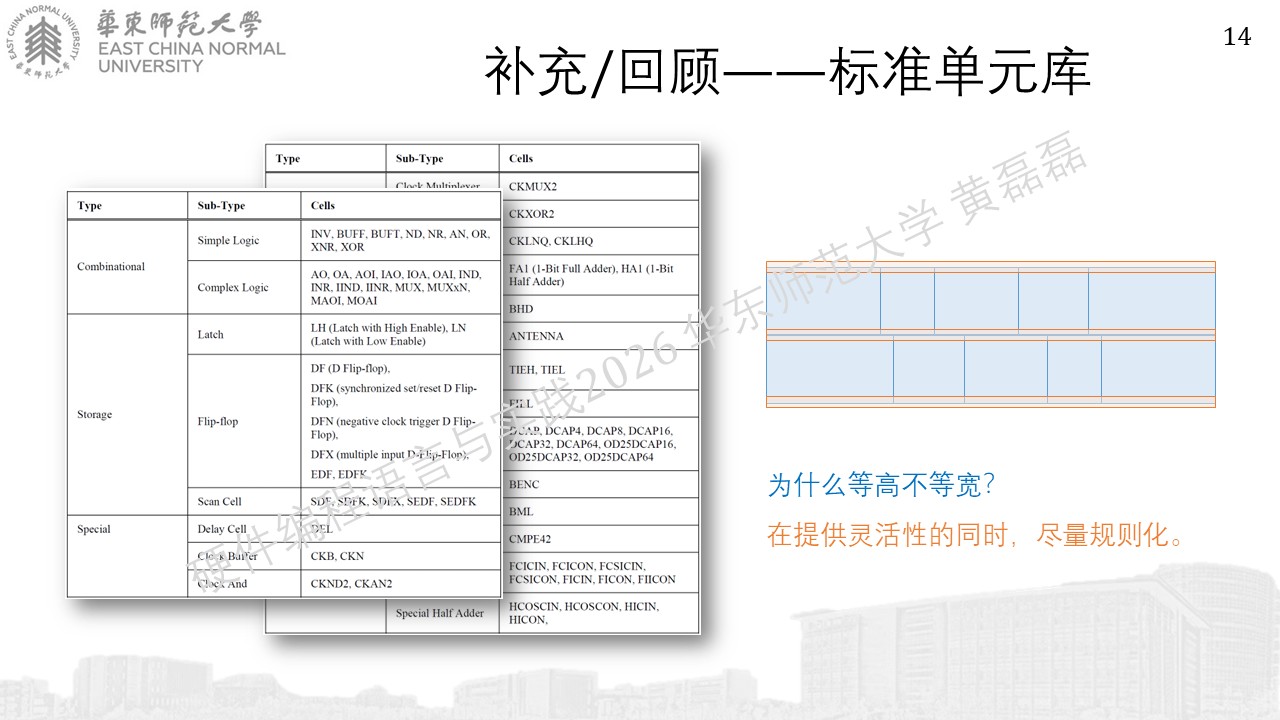

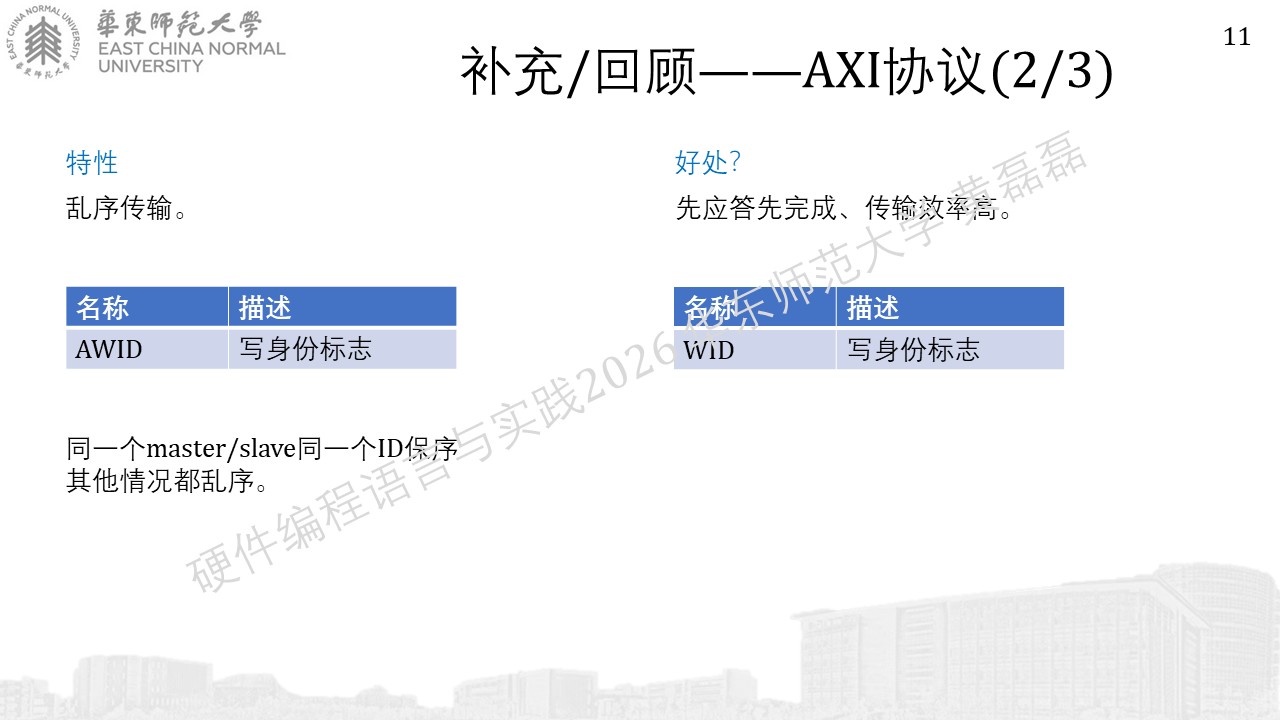

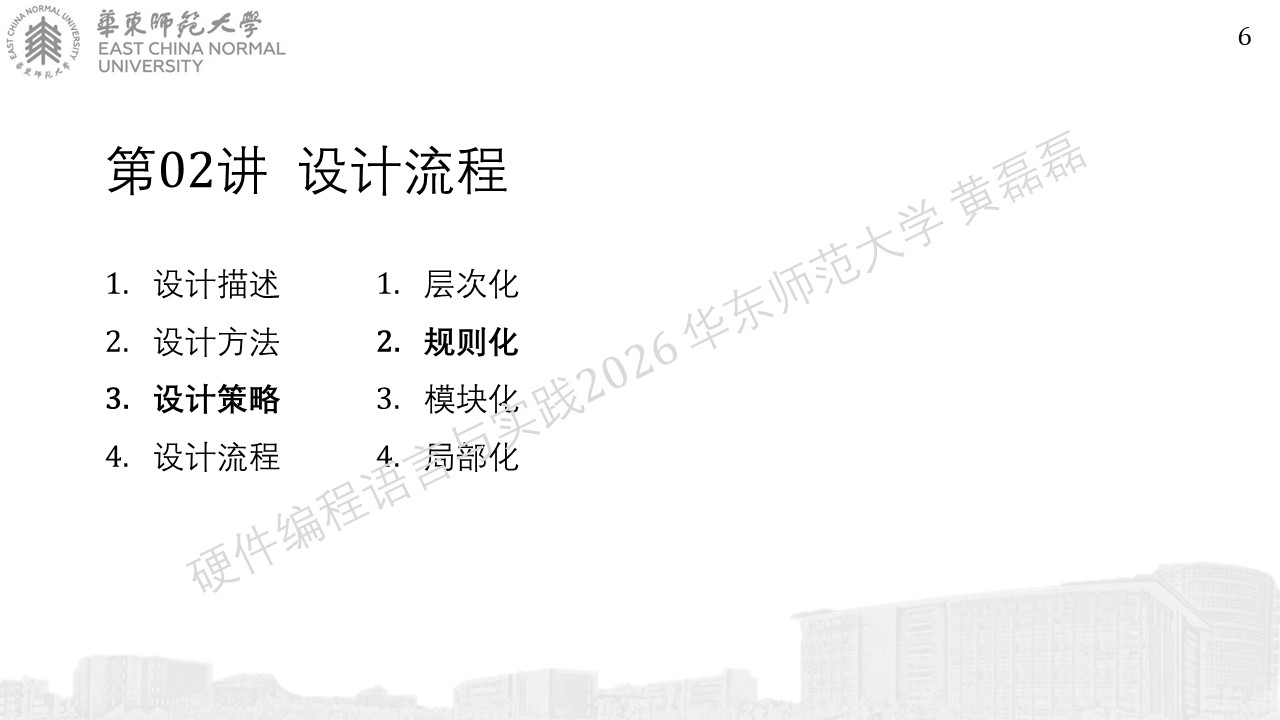

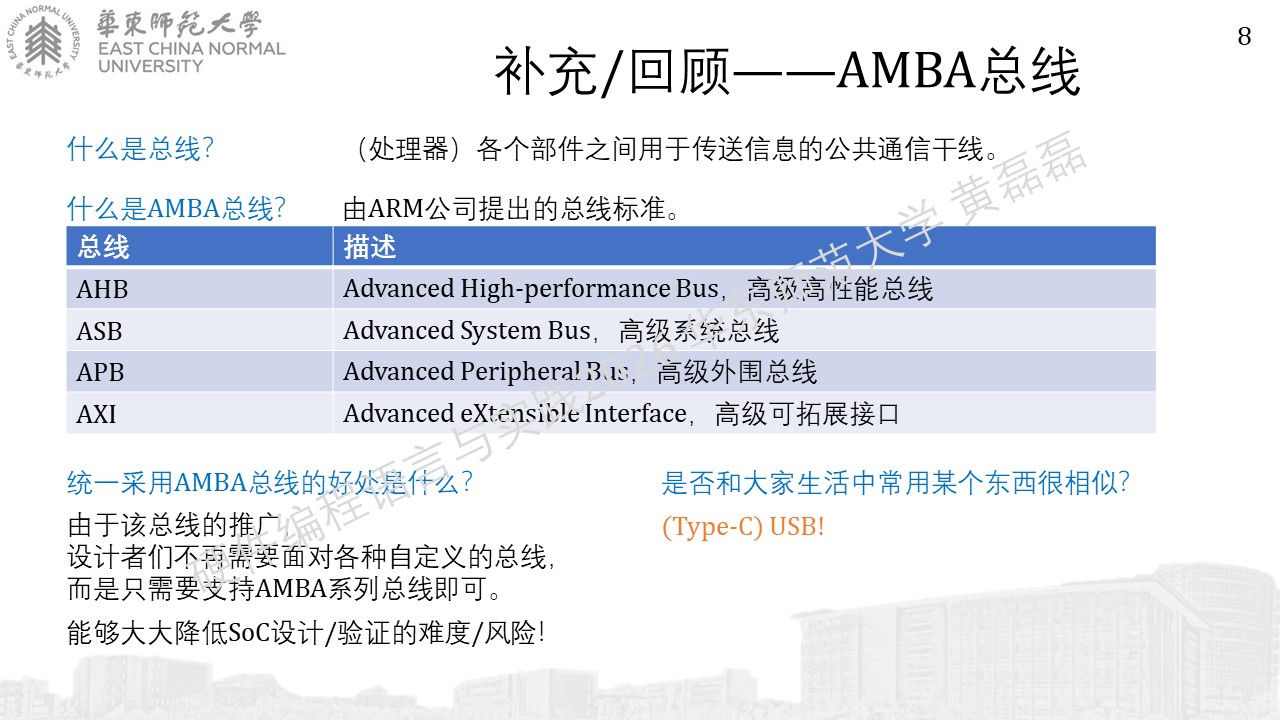

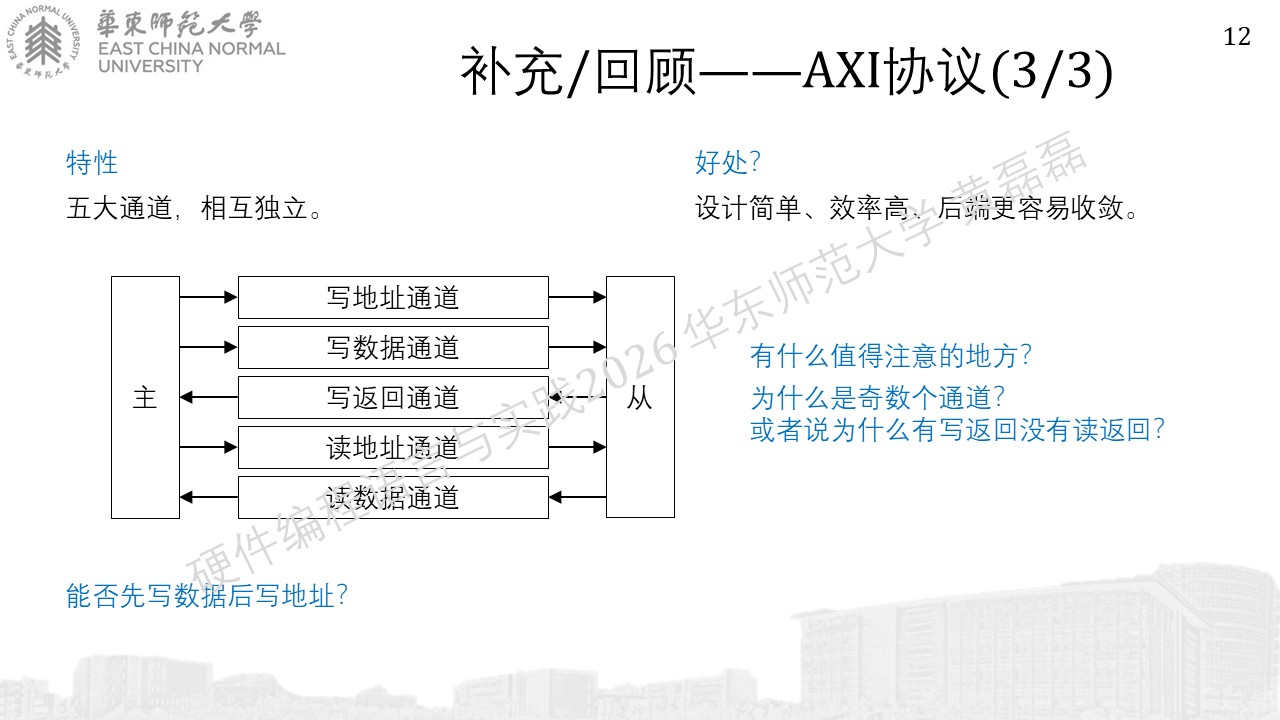

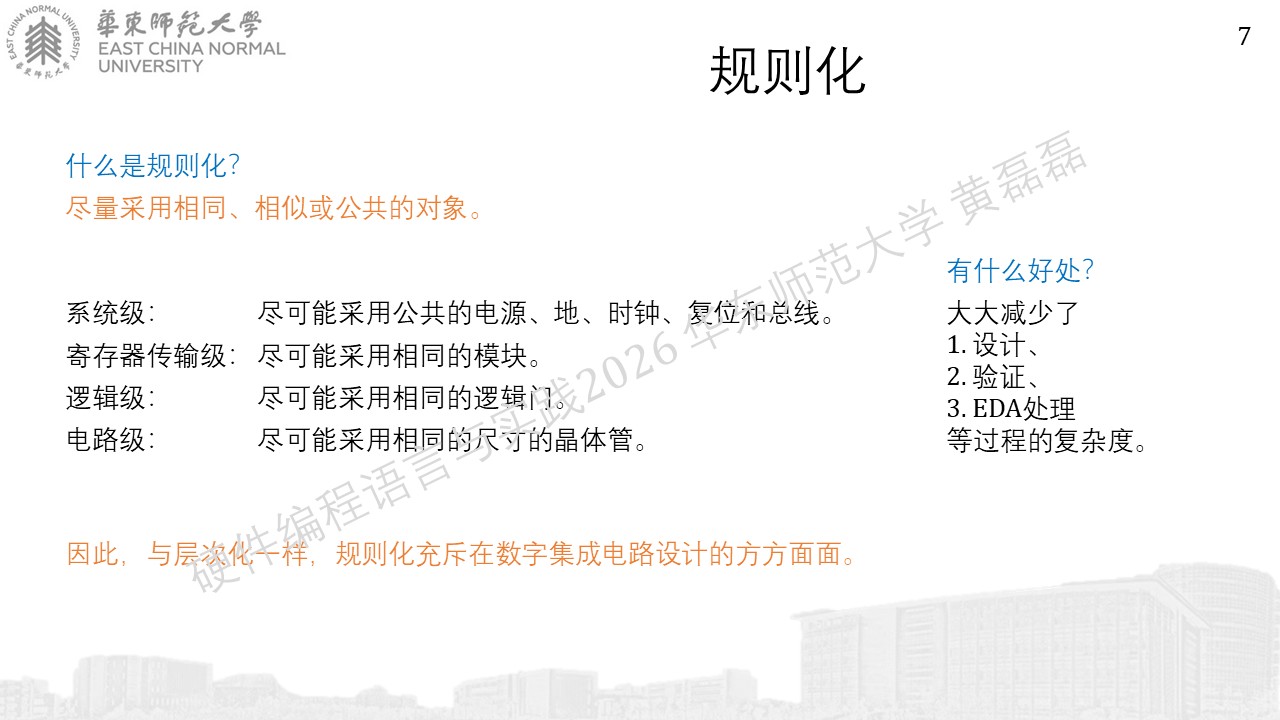

规则化

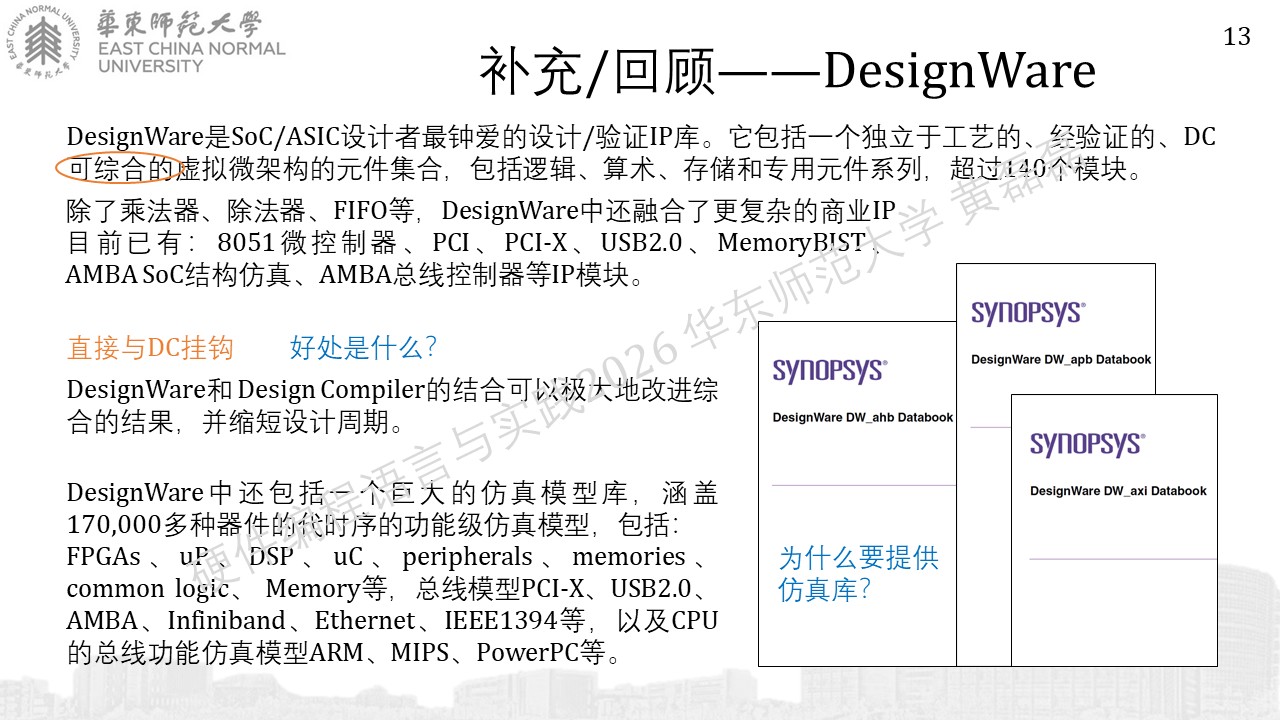

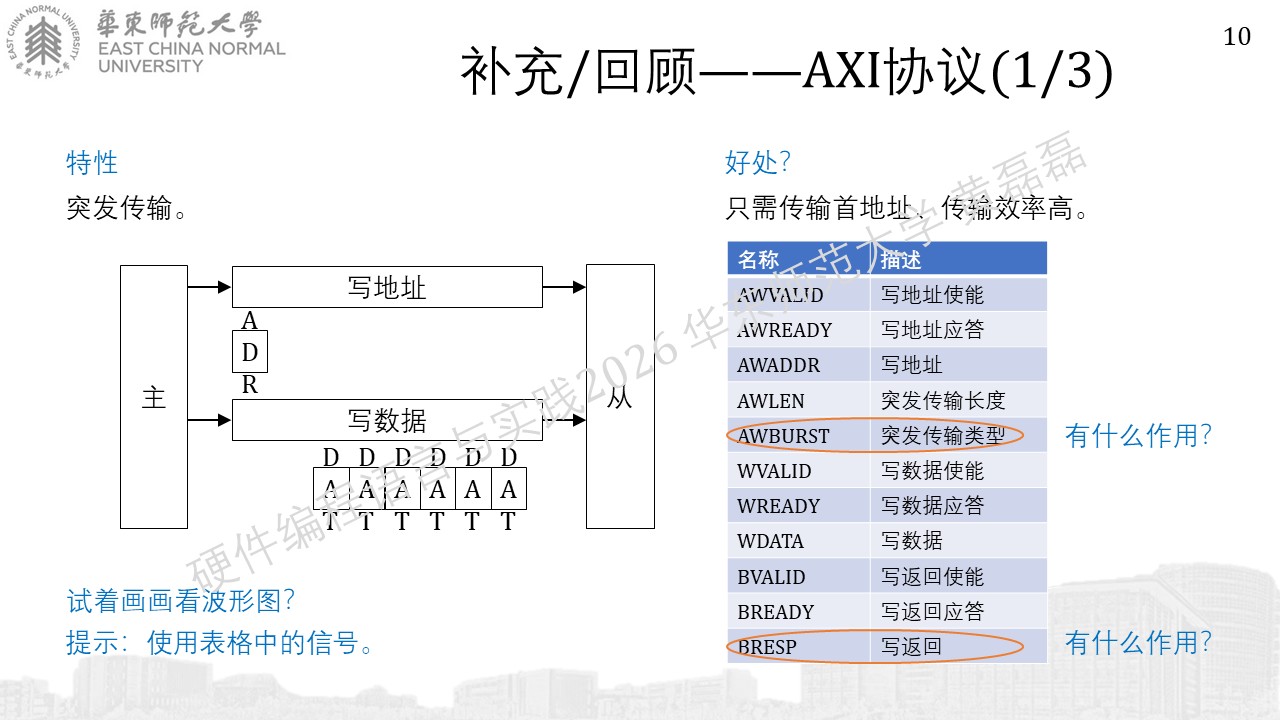

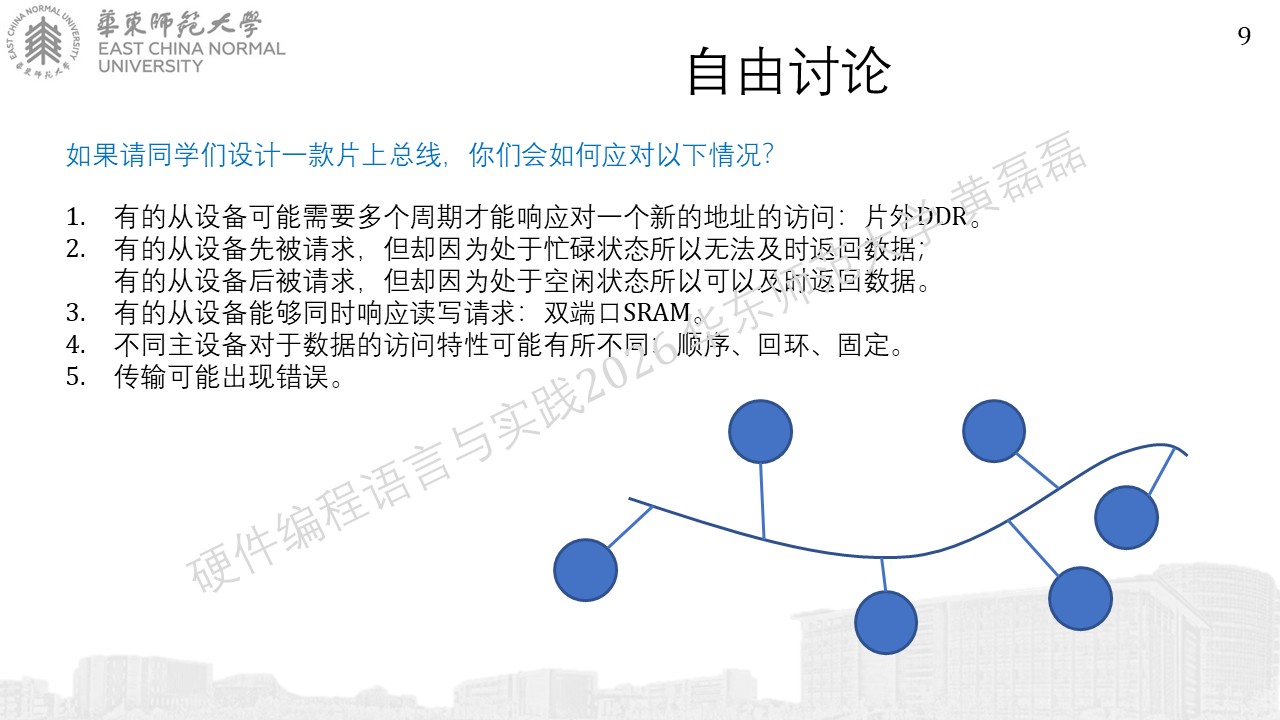

../../_images/%E5%B9%BB%E7%81%AF%E7%89%8765.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%8775.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%8785.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%8795.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87105.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87118.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87125.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87135.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87145.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87155.JPG

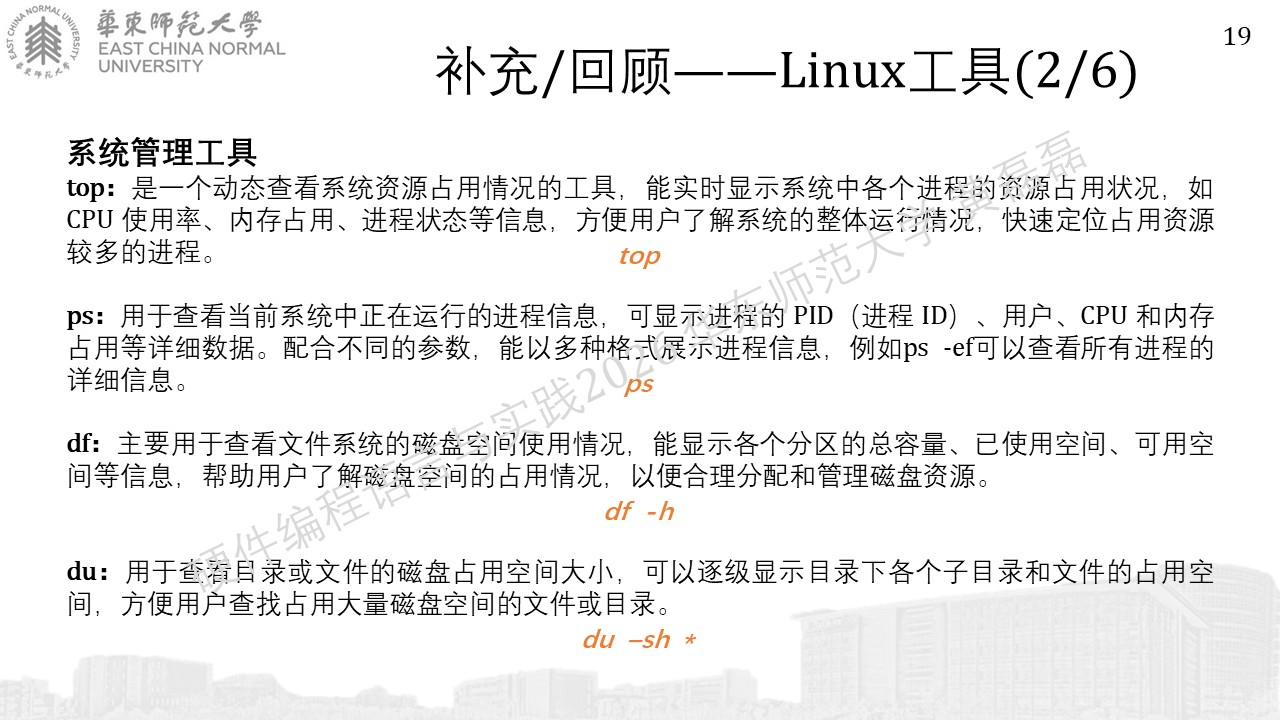

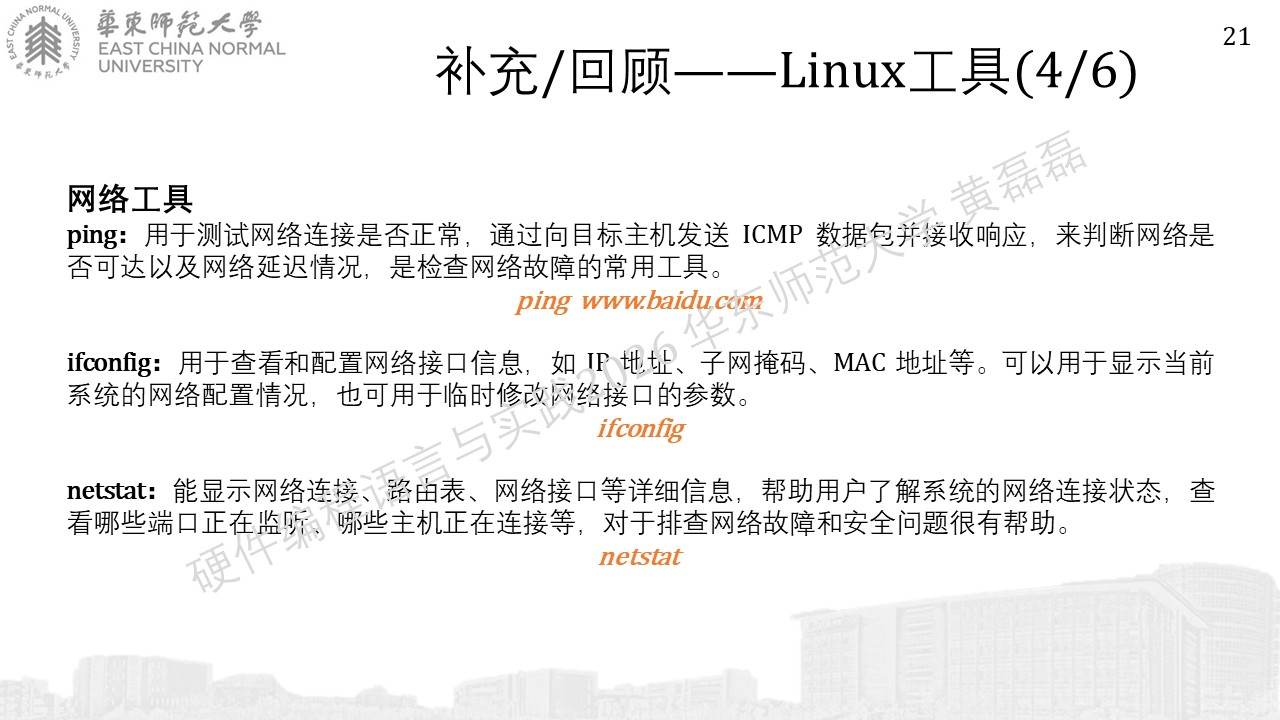

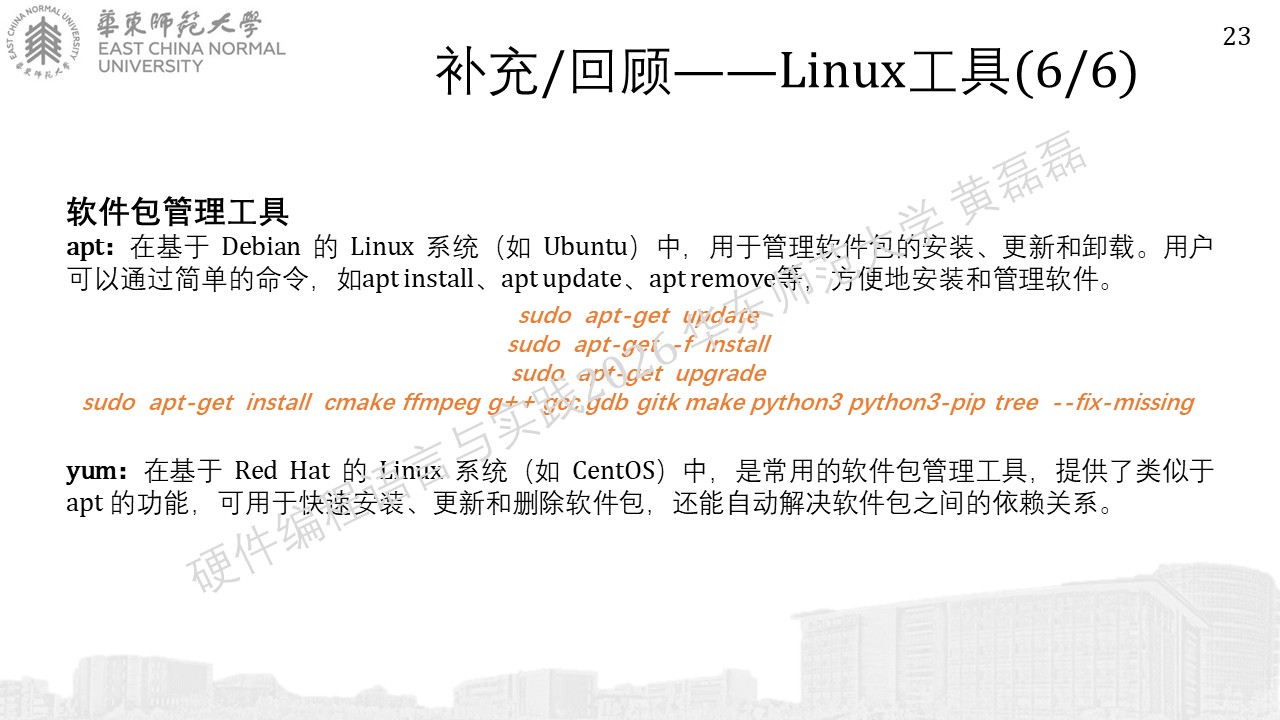

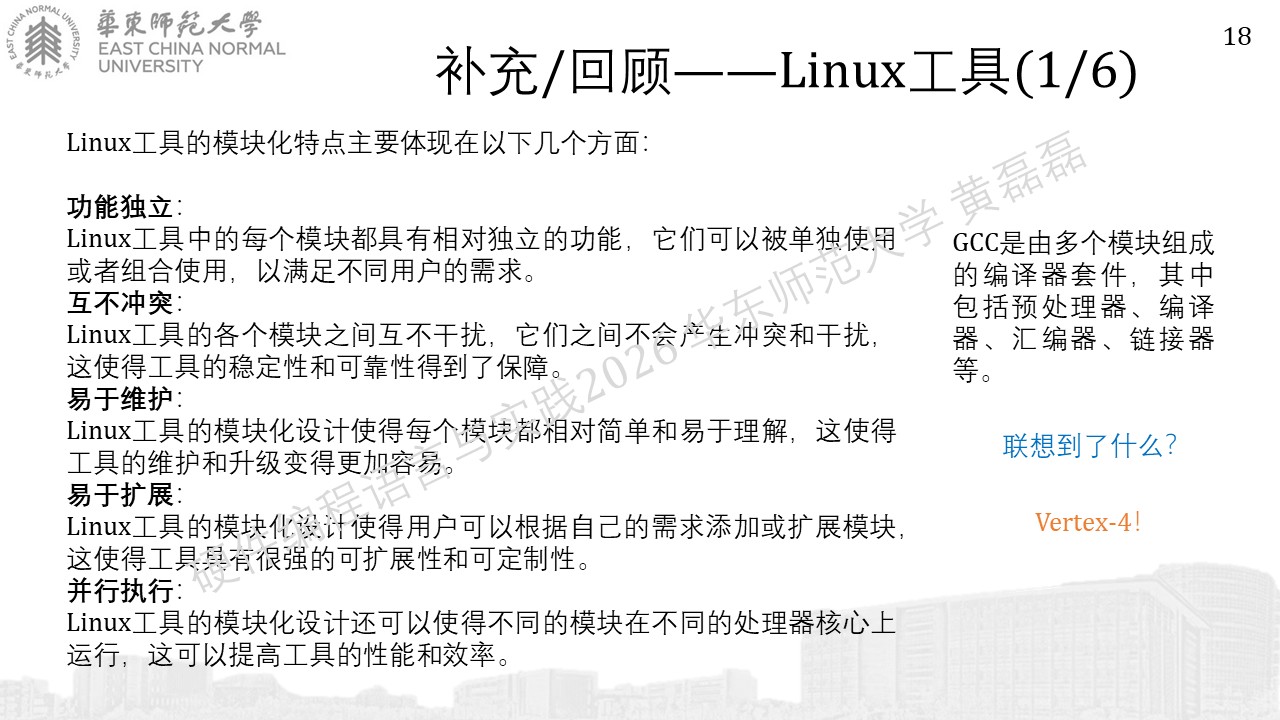

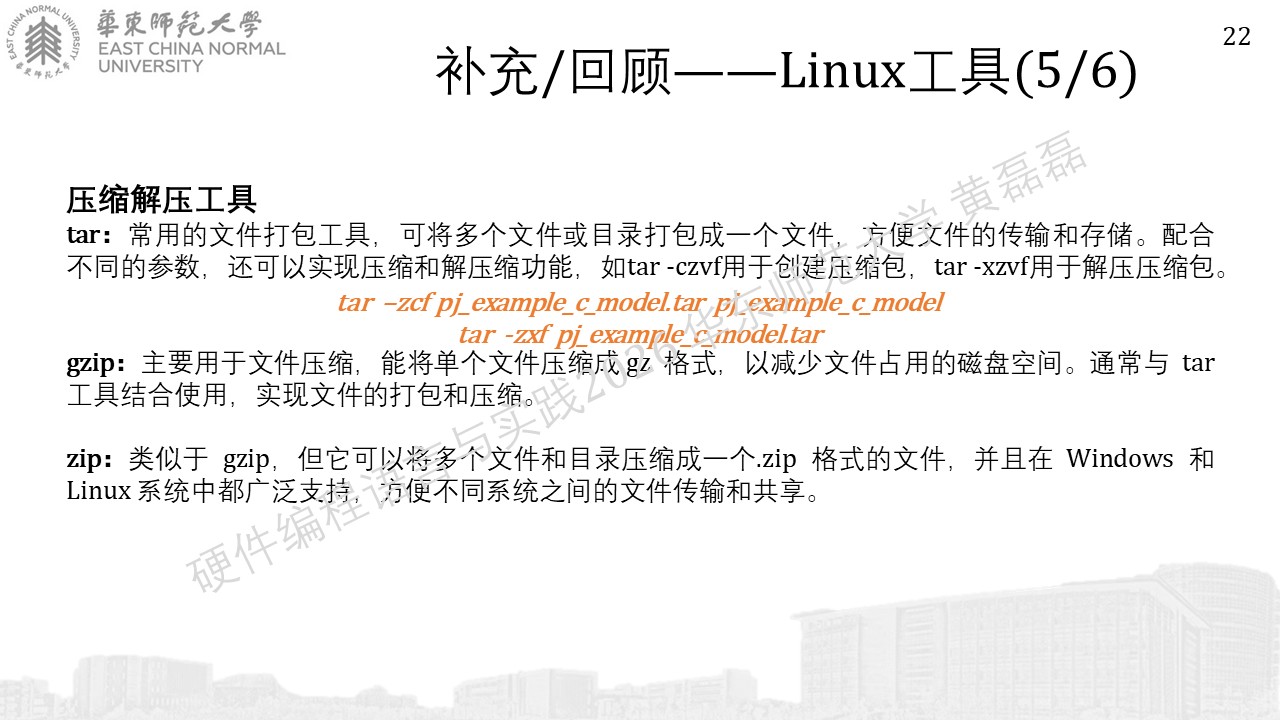

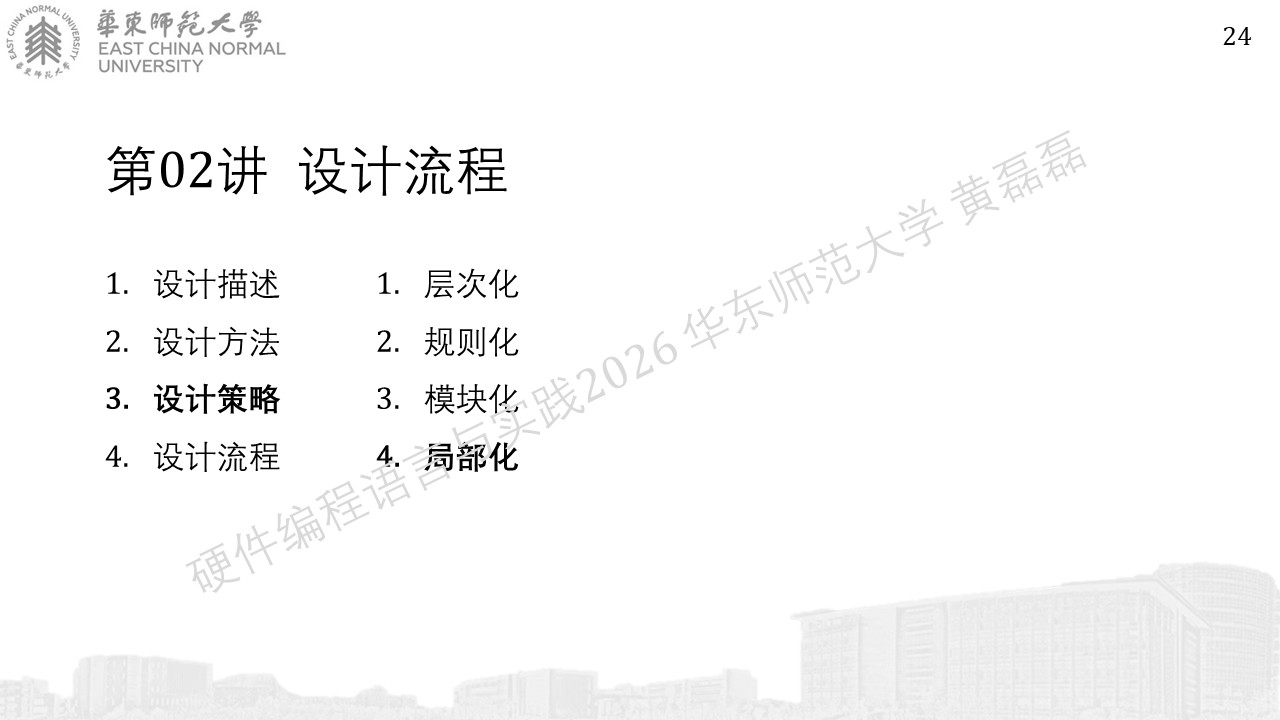

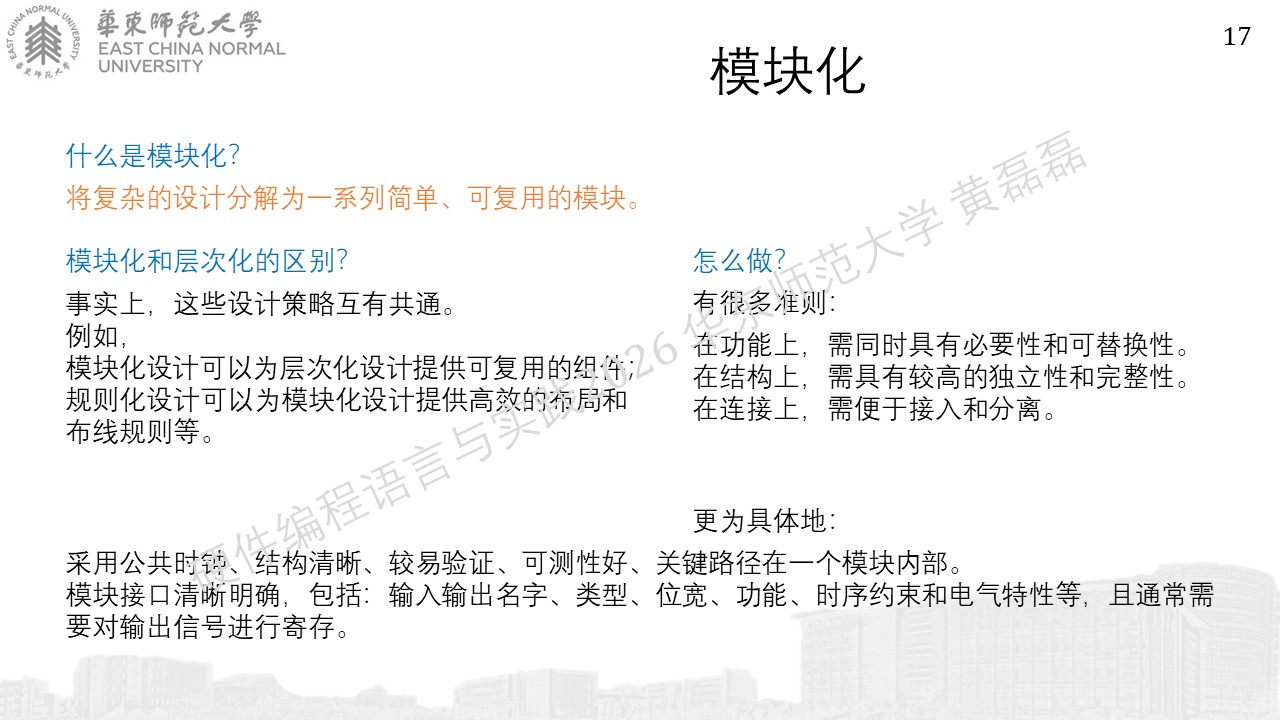

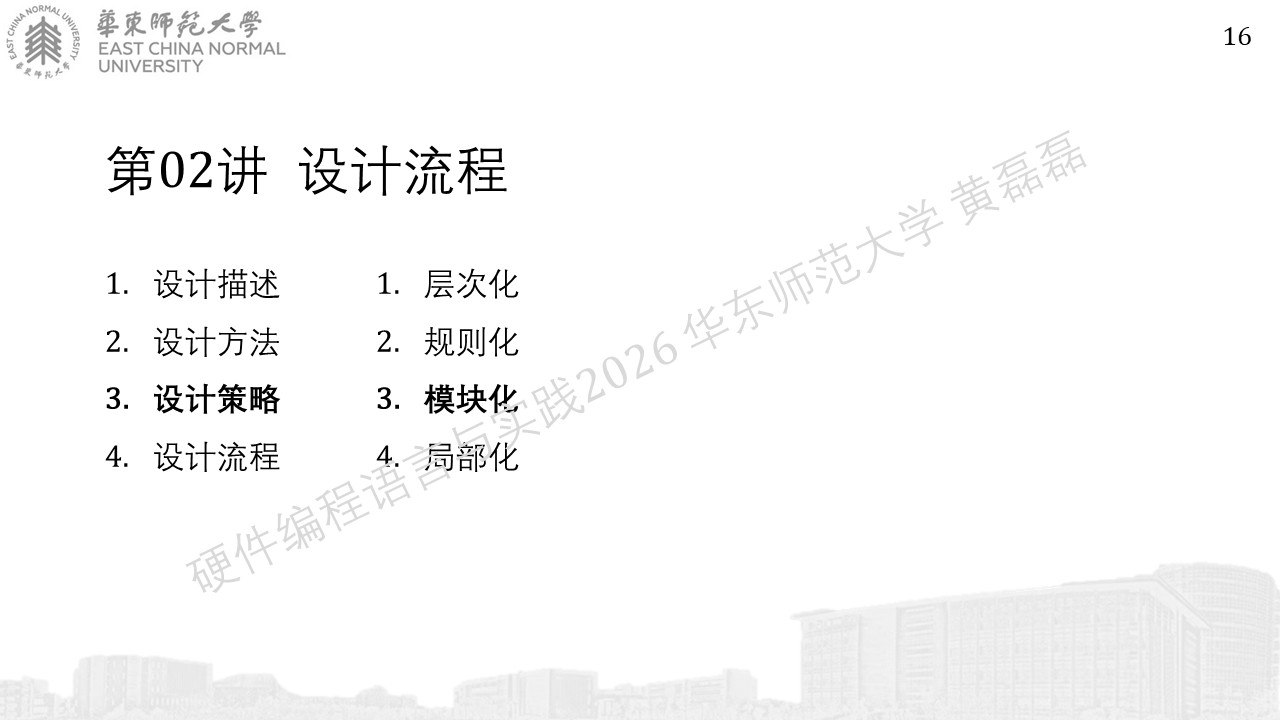

模块化

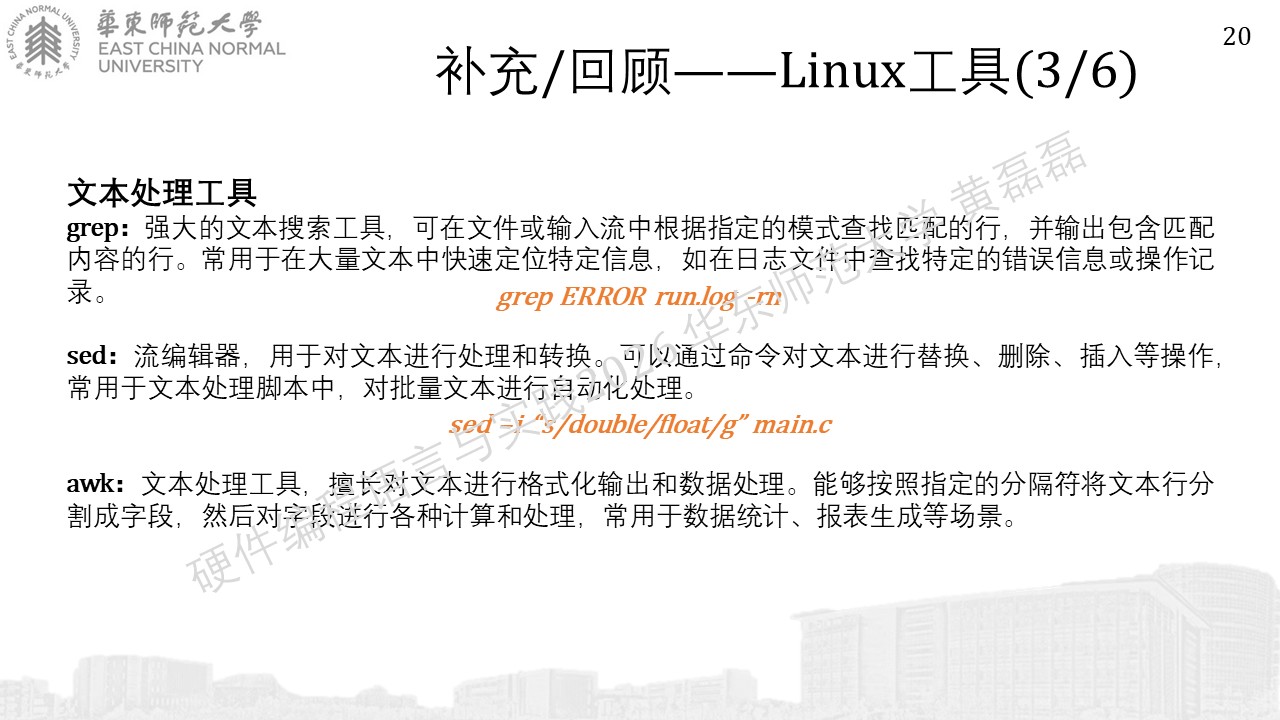

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87165.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87175.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87185.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87195.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87204.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87218.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87224.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87233.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87243.JPG

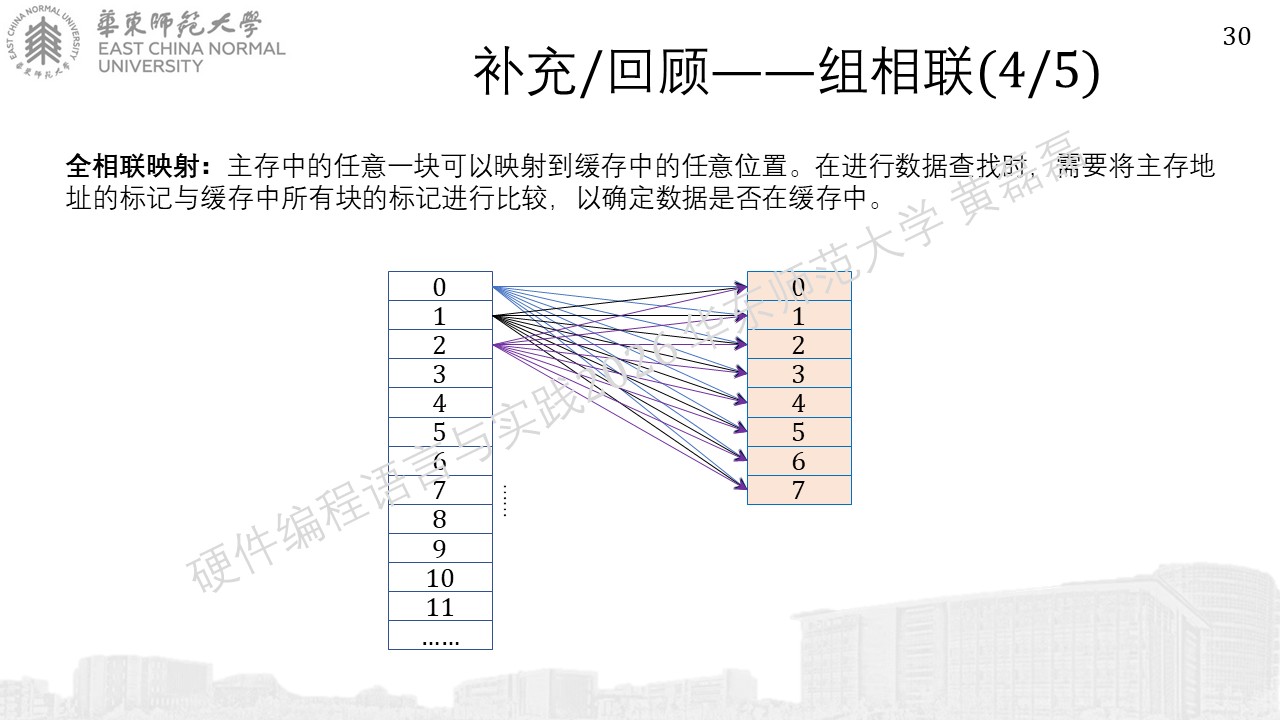

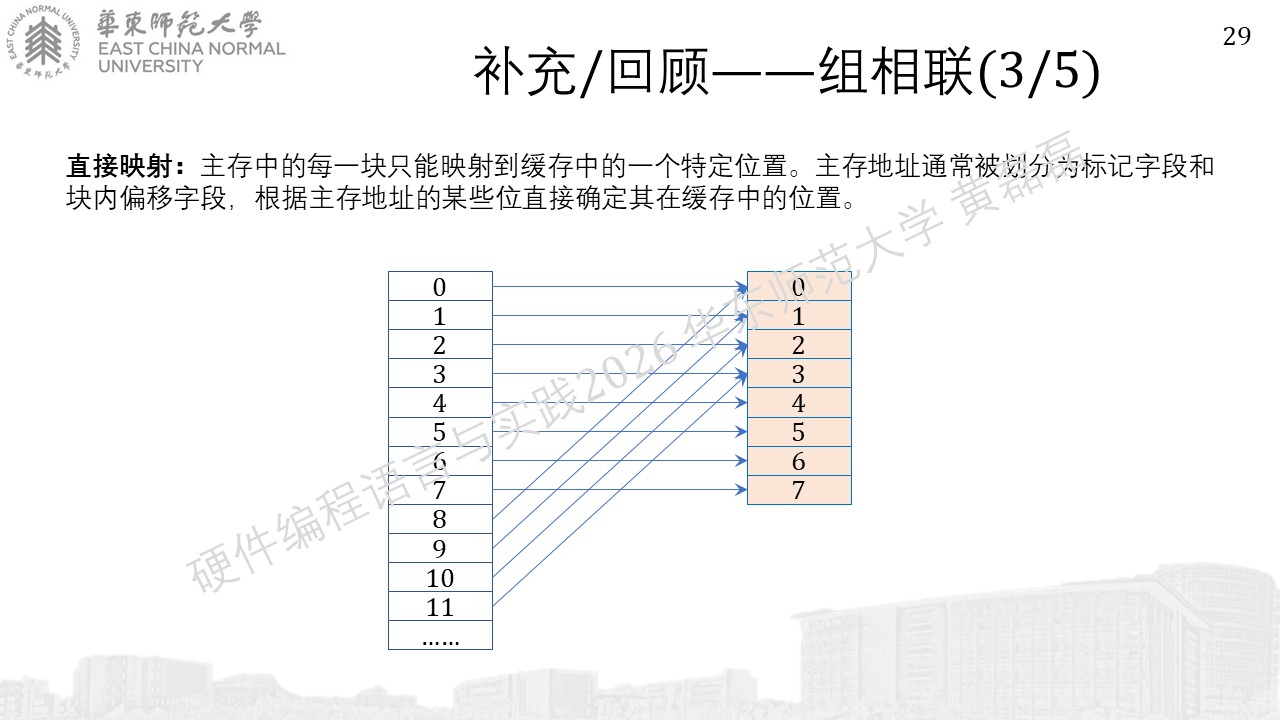

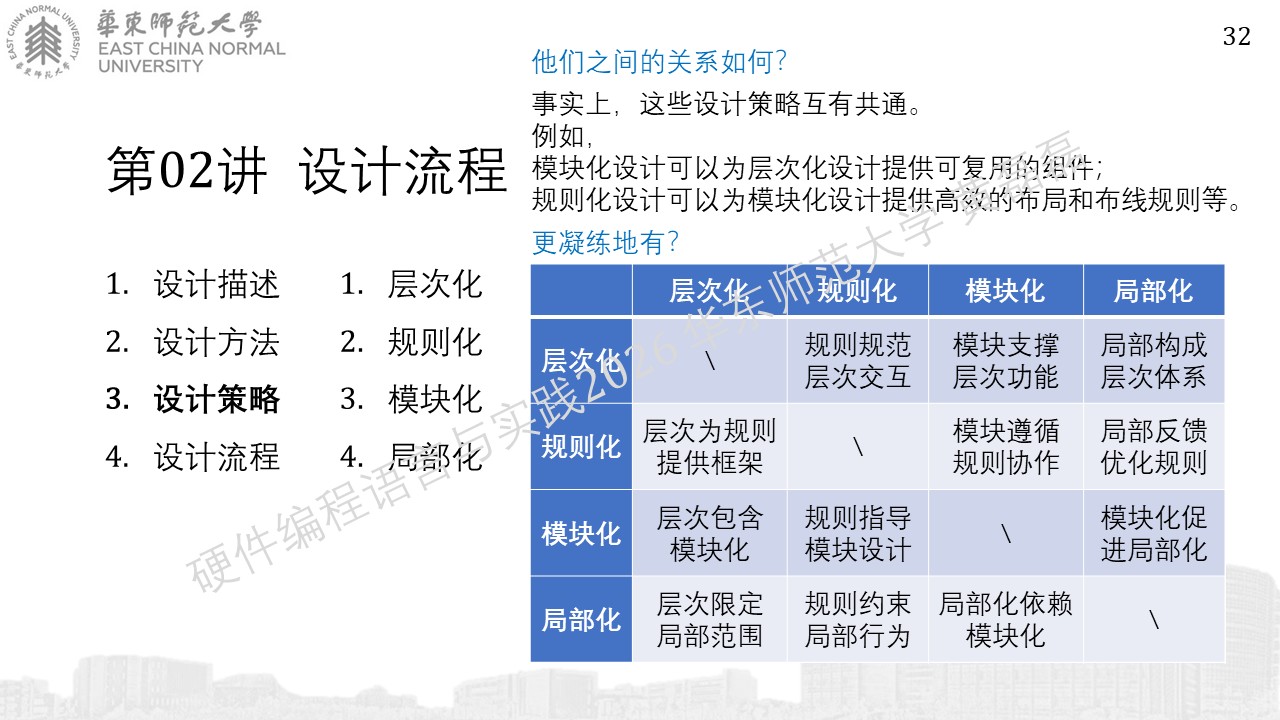

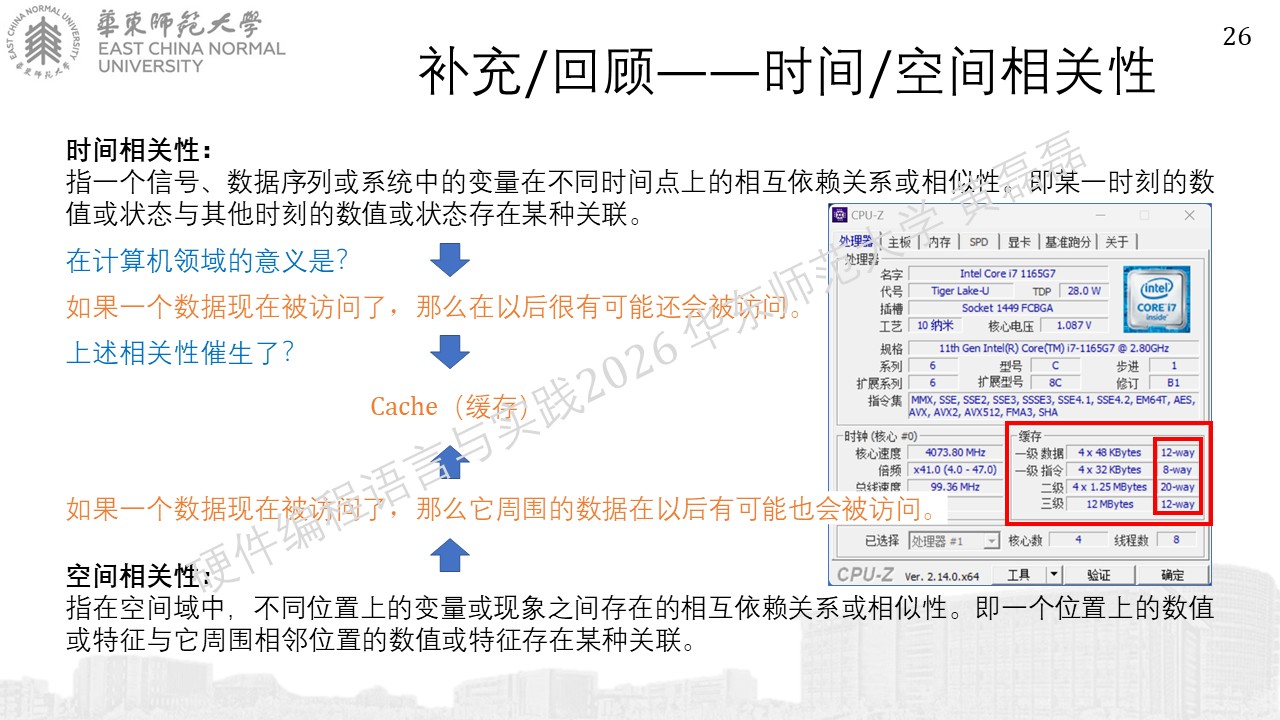

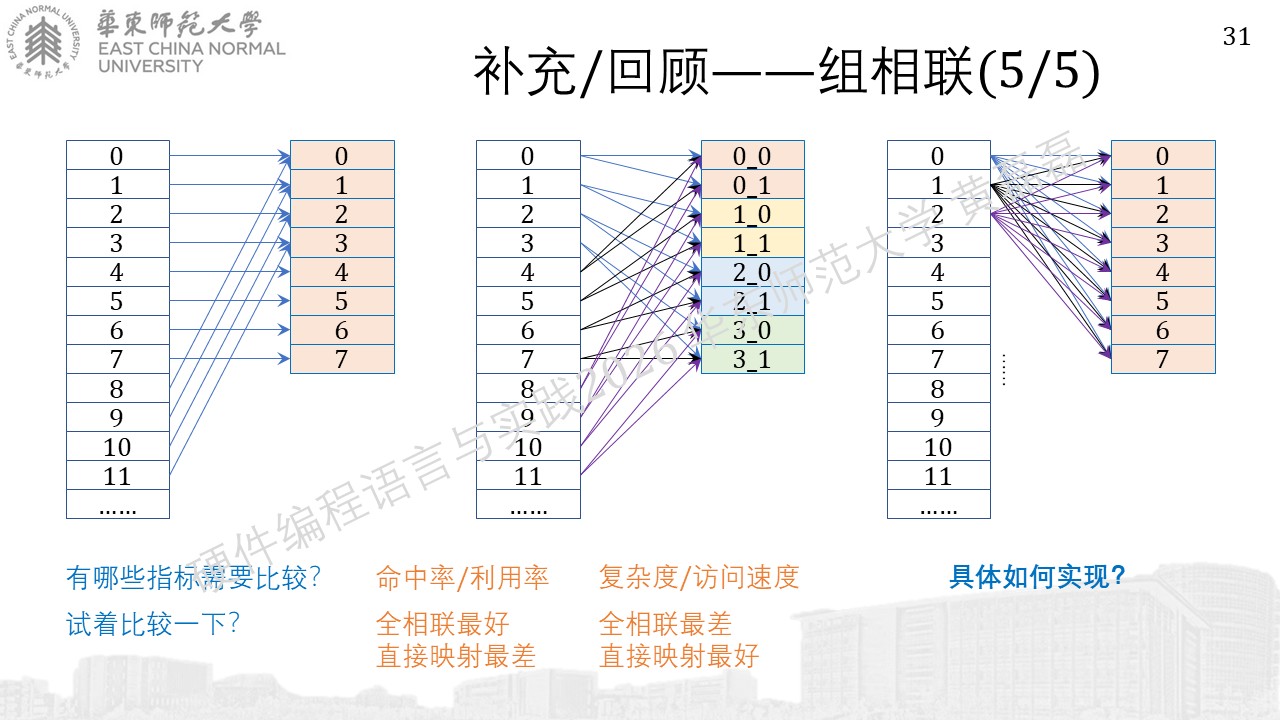

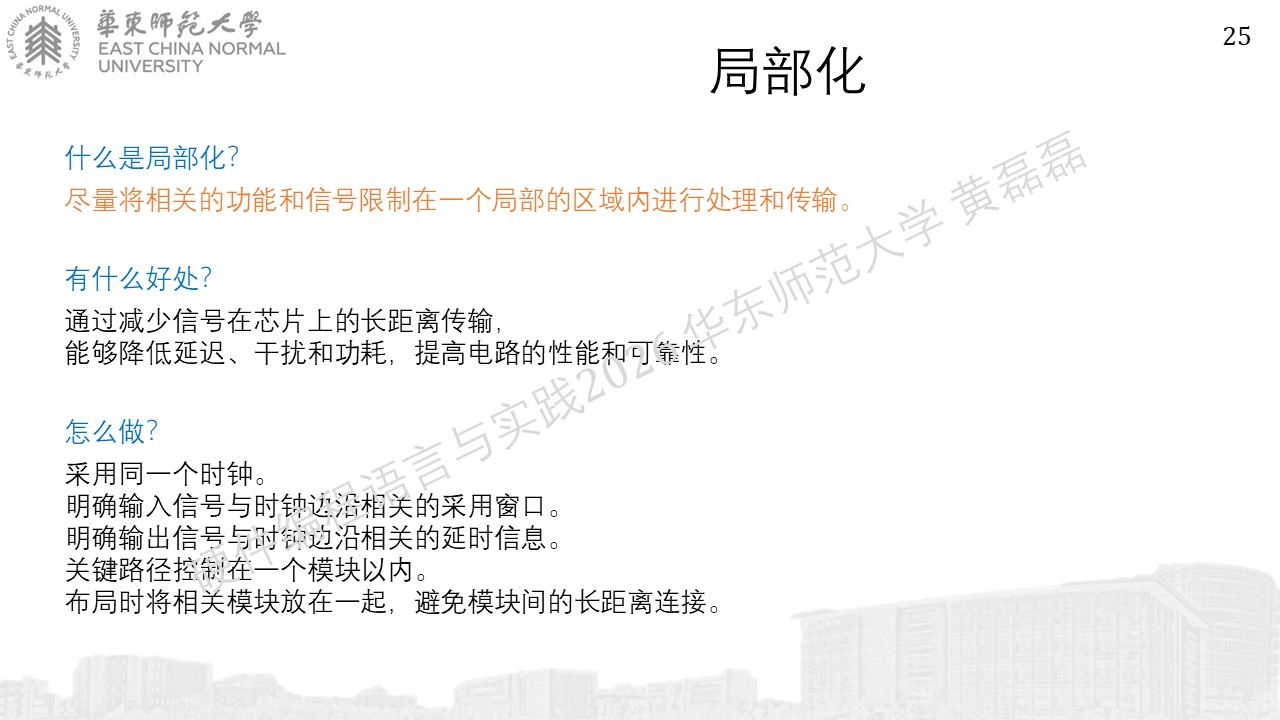

局部化

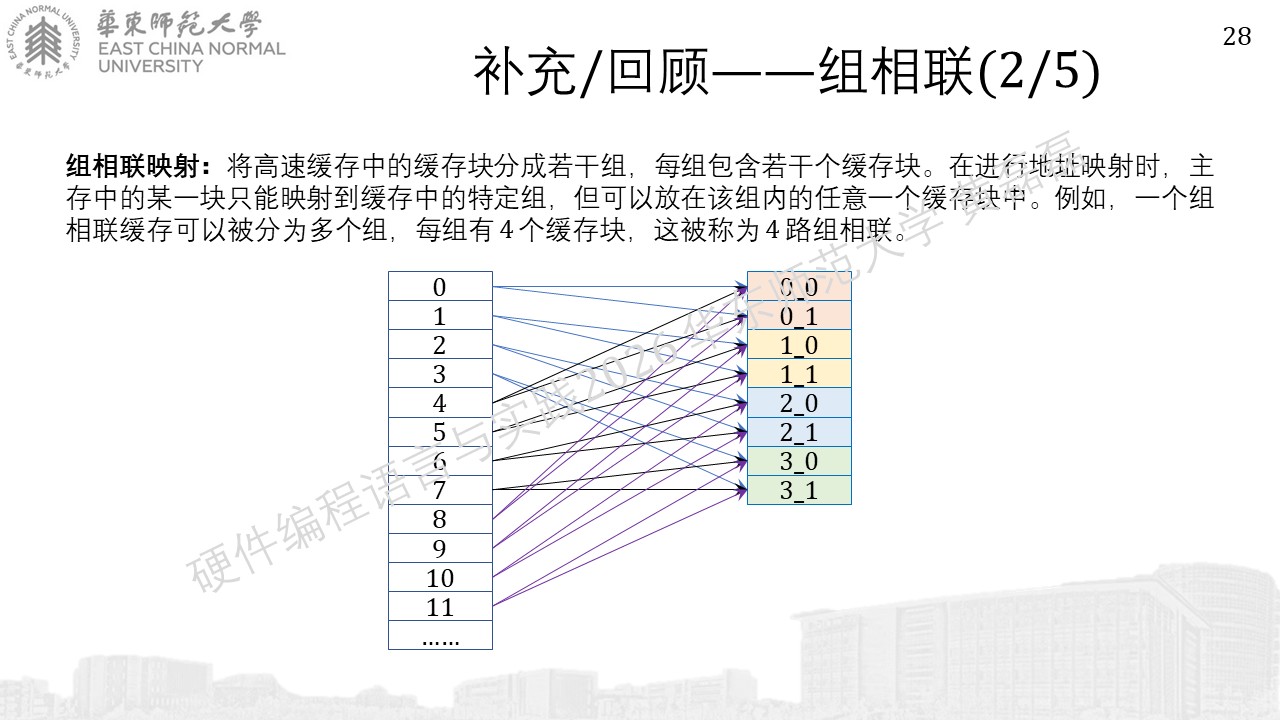

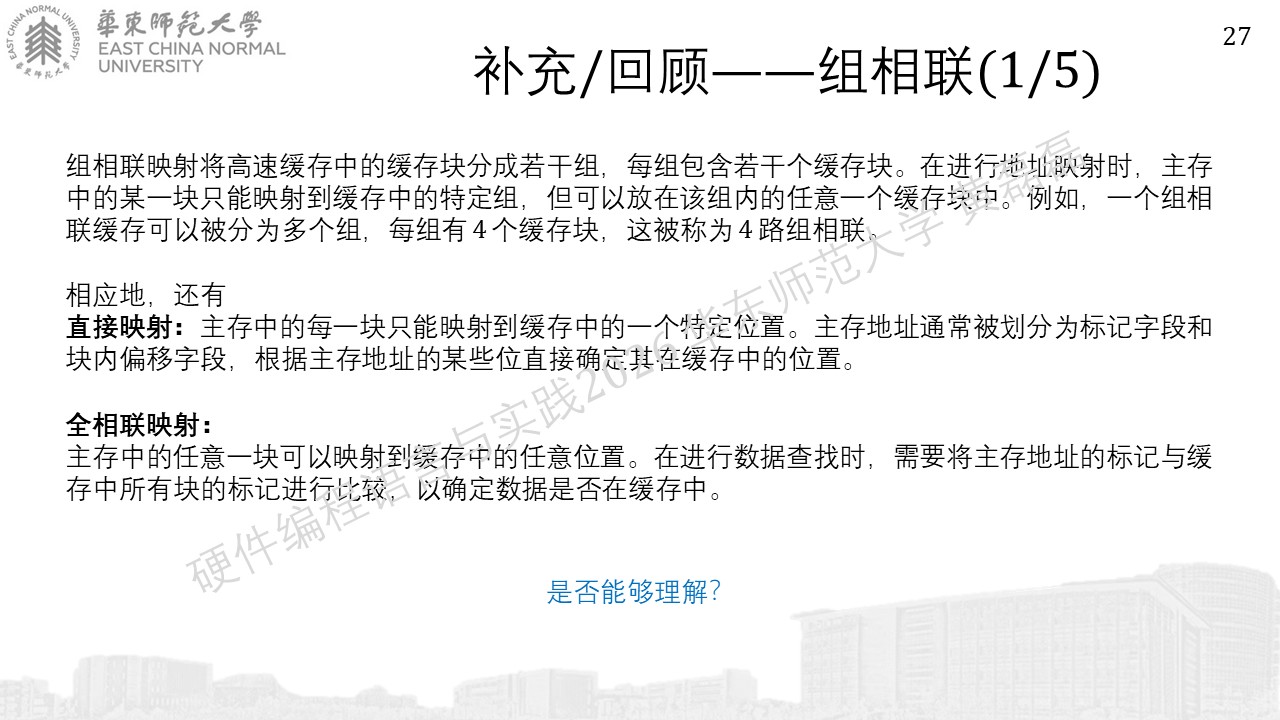

../../_images/%E5%B9%BB%E7%81%AF%E7%89%87253.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87263.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87272.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87282.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87292.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87302.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87316.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87322.JPG ../../_images/%E5%B9%BB%E7%81%AF%E7%89%87332.JPG
